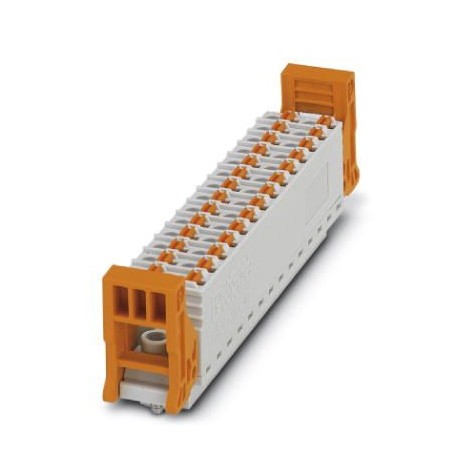

PHOENIX CONTACT FRONT-FMC 1,5/D28-FF-6,35-R FRONT-FMC 1,5/D28-FF-6,35-R 1714761 PHOENIX CONTACT PCB connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FRONT-FMC 1,5/D28-FF-6,35-R 1714761 PHOENIX CONTACT PCB connector

FRONT-FMC 1,5/D28-FF-6,35-R

1714761

PHOENIX CONTACT

500 Pcs.

PCB connector Connector for printed circuit board, nominal section: 1.5 mm², color: light gray, nominal current: 6 A, nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Female, number of potentials: 56, number of rows: 2, number of poles: 28, number of connections: 56, article family: FRONT-FMC 1.5/.. -FF, pitch: 6.35 mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, pin arrangement: Linear pin arrangement, clamping hook: - without clamping hook, plug-in system: IEC 60603 Connectors - Type D, locking: Screw locking, fixing type: Air clamping (screw), packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1714761
Packing unit20 pc
Minimum order quantity500 pc
NoteMade to Order (non-returnable)
GTIN4055626387758
Weight per Piece (excluding packing)42.500 g
Custom tariff number85366990
Country of originCN (China)

Dimensions

Length [ l ]17.27 mm
Width [ w ]117.23 mm
Height [ h ]26 mm
Pitch6.35 mm
Dimension a82.55 mm

General

Range of articlesFRONT-FMC 1,5/..-FF
Number of positions28
Nominal cross section1.5 mm²

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1714761 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 56
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 6.35 mm
Modular spacing connections (EF006827) 6.35 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 320 V
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.5 mm²
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Other
Housing material (EF001596) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
