View larger
Images are for illustrative purposes only. Please refer to data sheet for details

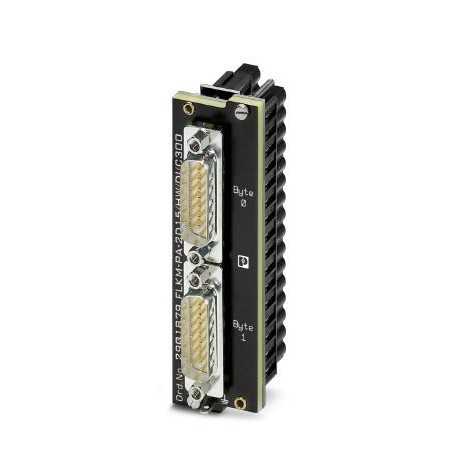

FLKM-PA-2D15/HW/DI/C300 2901879 PHOENIX CONTACT Front adapters
FLKM-PA-2D15/HW/DI/C300
2901879
PHOENIX CONTACT
1 Pcs.
Front adapters
VARIOFACE front adapter, for Honeywell C300, C series I/O. Especially for PLC-V8/D15.../IN link. 2 x 8 channel transmission.
Automation > Accessories/spare parts for controls
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2901879 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 486 (C-5-2017) |
| GTIN | 4046356637053 |
| Weight per Piece (excluding packing) | 100.300 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. permissible operating voltage | 60 V DC |
|---|---|
| Max. permissible current | 1 A (per path) |
| Mounting position | any |
| Degree of protection | IP00 |
Connection data 1
| Connection name | Field level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 2 |
| Number of positions | 15 |
Supported controller
| Controller | HONEYWELL Experion PKS C300/C-Series |
|---|---|
| - suitable I/O card | TDIL01 (non-redundant) |
| TDIL11 (redundant) |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| DIN EN 50178 | |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV (Functional insulation) |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027249290eCl@ss 5.127250300eCl@ss 6.027249200eCl@ss 7.027249290eCl@ss 8.027249290eCl@ss 9.027242292
| Feature Name | Feature Value |
|---|---|
| Type of electrical accessory/spare part (EF005722) | Adapter |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
