View larger
Images are for illustrative purposes only. Please refer to data sheet for details

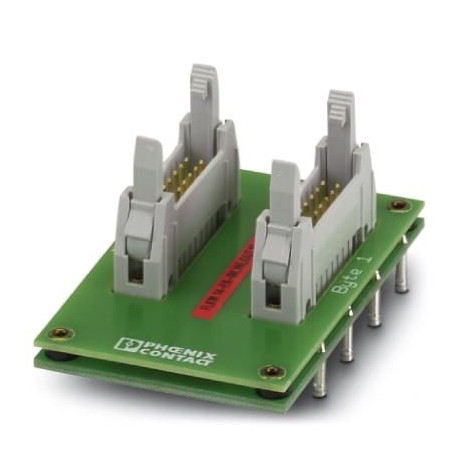

FLKM 14-PA-INLINE/OUT16 2302764 PHOENIX CONTACT Front adapters
FLKM 14-PA-INLINE/OUT16
2302764
PHOENIX CONTACT
1 Pcs.
Front adapters
VARIOFACE front adapter for Inline modules, for transmission of 16 (2 x 8) digital output signals.
Automation > Accessories/spare parts for controls
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2302764 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 492 (C-5-2017) |
| GTIN | 4017918929480 |
| Weight per Piece (excluding packing) | 32.080 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. permissible operating voltage | 60 V DC |
|---|---|
| Max. permissible current | 1 A (per path) |
| Mounting position | any |
| Degree of protection | IP20 |
Connection data 2
| Connection name | Field level |
|---|---|
| Connection method | IDC/FLK pin strip |
| Number of connections | 2 |
| Number of positions | 14 |
| Pitch | 2.54 mm |
Supported controller
| Controller | PHOENIX CONTACT Inline |
|---|---|
| - suitable I/O card | IB IL 24 DO 16-PAC |
| ILB ... 24 DO16 | |
| ILB ... 24 DO32 | |
| ILB ... 24 DI16 DO16 |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| DIN EN 50178 | |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV |
| Insulation | Functional insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027249290eCl@ss 5.127250300eCl@ss 6.027249200eCl@ss 7.027249290eCl@ss 8.027249290eCl@ss 9.027242292
| Feature Name | Feature Value |
|---|---|
| Type of electrical accessory/spare part (EF005722) | Adapter |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
