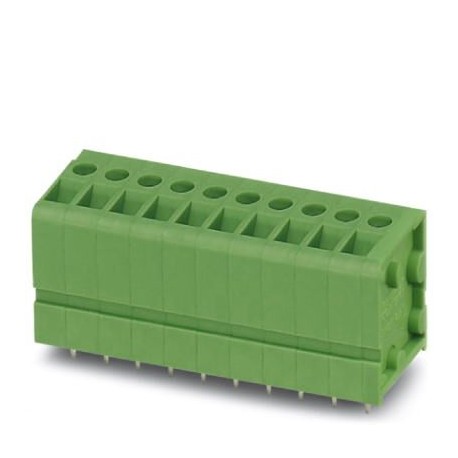

PHOENIX CONTACT FRONT 2,5-V/SA10/ 9 BK FRONT 2,5-V/SA10/ 9 BK 1809555 PHOENIX CONTACT PCB terminal block, nominal current: 24 A, nom. voltage: 400 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FRONT 2,5-V/SA10/ 9 BK 1809555 PHOENIX CONTACT PCB terminal block, nominal current: 24 A, nom. voltage: 400 ..

FRONT 2,5-V/SA10/ 9 BK

1809555

PHOENIX CONTACT

10 Pcs.

PCB terminal block, nominal current: 24 A, nom. voltage: 400 V, pitch: 5 mm, number of positions: 9, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: black Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of potentials: 9, number of rows: 1, number of poles per row: 9, article family: FRONT 2.5-V/SA10, pitch: 5 mm, connection type: Front screw connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 5 mm, number of welding pins per potential: 2, packaging type: boxed PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², pitch: 5 mm, number of positions: 9, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: black, Pin layout: Linear double pinning, Solder pin [P]: 3.5 mm

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1809555
Packing unit1 pc
Minimum order quantity10 pc
GTIN4046356702324
Weight per Piece (excluding packing)32.200 g
Custom tariff number85369010
Country of originDE (Germany)

Item properties

Brief article descriptionPCB terminal block
Range of articlesFRONT 2,5-V/SA10
Pitch5 mm
Number of positions9
Connection methodFront screw connection
Screw threadM2,5
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1
Number of connections9
Number of potentials9
Back to top

Electrical parameters

Nominal current24 A
Nom. voltage400 V
Rated voltage250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Back to top

Connection capacity

Connection methodFront screw connection
pluggableYes
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG / kcmil24 ... 14
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 0.75 mm²
2 conductors with same cross section, flexible0.2 mm² ... 0.75 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 0.34 mm²
Stripping length9 mm
Torque0.4 Nm ... 0.5 Nm
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)
Back to top

Material data - housing

Housing colorblack (9005)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Back to top

Dimensions for the product

Dimensional drawing
Length [ l ]18.5 mm
Height [ h ]31 mm
Pitch5 mm
Height (without solder pin)20 mm
Solder pin [P]3.5 mm
Pin spacing10 mm
Pin dimensions0.8 x 0.8 mm
Dimension a40 mm
Back to top

Dimensions for PCB design

Hole diameter1.2 mm
Pin spacing10 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package10
Denomination packing unitsPcs.
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Back to top

Electrical tests

Rated current24 A
Conductor cross section2.5 mm²
Rated voltage (III/2)400 V
Rated surge voltage (III/2)4 kV
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60664-1:2007-04
SpecificationIEC 60664-1:2007-04
Minimum clearance - inhomogeneous field (III/3)3 mm
Minimum clearance - inhomogeneous field (III/2)3 mm
Minimum clearance - inhomogeneous field (II/2)3 mm
Minimum creepage distance value (III/3)3.2 mm
Minimum creepage distance value (III/2)3 mm
Minimum creepage distance value (II/2)3.2 mm
Back to top

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027141109
eCl@ss 4.127141109
eCl@ss 5.027141190
eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643
Back to top

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121432
UNSPSC 13.239121432
UNSPSC 18.039121432
UNSPSC 19.039121432
UNSPSC 20.039121432
UNSPSC 21.039121432
Back to top

ETIM for 1809555 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 24.5 mm
Number of electrical connections (EF008252) 9
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
