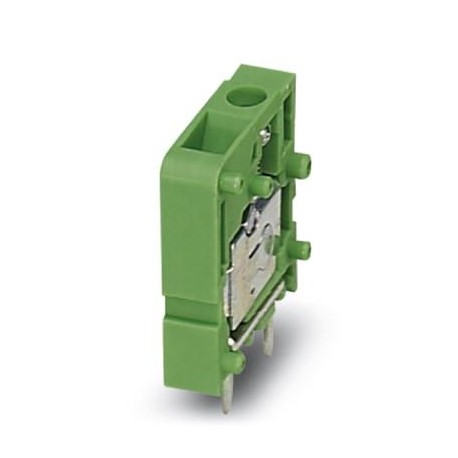

PHOENIX CONTACT FRONT 2,5-V/SA10/12 BU BD NZ FRONT 2,5-V/SA10/12 BU BD NZ 1987371 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FRONT 2,5-V/SA10/12 BU BD NZ 1987371 PHOENIX CONTACT PCB terminal block

FRONT 2,5-V/SA10/12 BU BD NZ

1987371

PHOENIX CONTACT

10 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of potentials: 12, number of rows: 1, number of poles per row: 12, article family: FRONT 2.5-V/SA10, pitch: 5 mm, connection type: Front screw connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: blue, Pin arrangement: Linear pin arrangement, Pin length [P]: 5 mm, number of welding pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1987371
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
GTIN4017918928759
Weight per Piece (excluding packing)42.100 g
Custom tariff number85369010
Country of originDE (Germany)

Item properties

Brief article descriptionPCB terminal block
Range of articlesFRONT 2,5-V/SA10
Pitch5 mm
Number of positions12
Connection methodFront screw connection
Screw threadM2,5
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1

Electrical parameters

Rated current24 A
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV

Connection capacity

Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG / kcmil24 ... 14
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 0.75 mm²
2 conductors with same cross section, flexible0.2 mm² ... 0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.25 mm² ... 0.34 mm²
Stripping length9 mm
Torque0.4 Nm ... 0.5 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]18.5 mm
Height [ h ]31 mm
Pitch5 mm
Height (without solder pin)20 mm
Solder pin [P]3.5 mm
Pin spacing10 mm
Pin dimensions0.8 x 0.8 mm
Dimension a55 mm

Dimensions for PCB design

Hole diameter1.2 mm
Pin spacing10 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package10
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C

Termination and connection method

Test for conductor damage and slackeningIEC 60999-1:1999-11
Test passed

Pull-out test

Pull-out testIEC 60999-1:1999-11
Test passed
Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
2.5 mm² / flexible / > 50 N
2.5 mm² / solid / > 50 N

Mechanical tests according to standard

Test specificationIEC 60947-7-4

Electrical tests

Rated current24 A
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV

Air clearances and creepage distances

Insulating material groupI
Voltage250 V
Rated insulation voltage (III/3)250 V
Rated insulation voltage (III/2)400 V
Rated insulation voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1987371 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 24.5 mm
Number of electrical connections (EF008252) 12
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Blue
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
