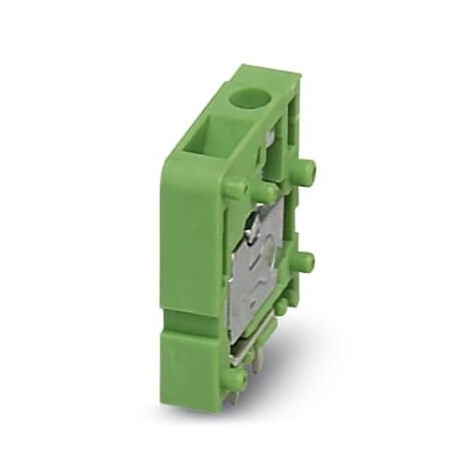

PHOENIX CONTACT FRONT 2,5-V/SA 5/ 8 MIX 11RZBD FRONT 2,5-V/SA 5/ 8 MIX 11RZBD 1799141 PHOENIX CONTACT PCB terminal block, nominal current: 24 A, nom. volta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FRONT 2,5-V/SA 5/ 8 MIX 11RZBD 1799141 PHOENIX CONTACT PCB terminal block, nominal current: 24 A, nom. volta..

FRONT 2,5-V/SA 5/ 8 MIX 11RZBD

1799141

PHOENIX CONTACT

250 Pcs.

PCB terminal block, nominal current: 24 A, nom. voltage: 400 V, pitch: 5 mm, number of positions: 8, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: multi-color Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal section: 2.5 mm², number of potentials: 8, number of rows: 1, number of poles per row: 8, article family: FRONT 2.5-V/SA 5, pitch: 5 mm, connection type: Front screw connection, mounting: Wave soldering, Conductor connection direction/printed circuit board: 90 °, color: multicolor, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB terminal block, nominal current: 24 A, nom. voltage: 400 V, pitch: 5 mm, number of positions: 8, connection method: Front screw connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: multi-color

Key Commercial Data

Orderkey1799141
Packing unit1
GTIN4046356661126
Custom tariff number85369010

Item properties

Brief article descriptionPCB terminal block
Range of articlesFRONT 2,5-V/SA 5
Pitch5 mm
Number of positions8
Connection methodFront screw connection
Screw threadM2,5
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1
Number of connections8
Number of potentials8

Electrical parameters

Rated current24 A
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV

Connection capacity

Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG / kcmil24 ... 14
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 0.75 mm²
2 conductors with same cross section, flexible0.2 mm² ... 0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.25 mm² ... 0.34 mm²
Stripping length9 mm
Torque0.4 Nm ... 0.5 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]18.5 mm
Pitch5 mm
Height (without solder pin)20 mm
Solder pin [P]3.5 mm
Pin spacing5 mm
Pin dimensions0.8 x 0.8 mm
Dimension a35 mm

Dimensions for PCB design

Hole diameter1.2 mm
Pin spacing5 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package10
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (Depending on the current carrying capacity/derating curve)

Termination and connection method

Test for conductor damage and slackeningIEC 60999-1:1999-11
Test passed

Pull-out test

Pull-out testIEC 60999-1:1999-11
Test passed
Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
2.5 mm² / flexible / > 50 N
2.5 mm² / solid / > 50 N

Electrical tests

Rated current24 A
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV

Air clearances and creepage distances

Insulating material groupI
Rated insulation voltage (III/3)250 V
Rated insulation voltage (III/2)400 V
Rated insulation voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027141109
eCl@ss 4.127141109
eCl@ss 5.027141190
eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121432
UNSPSC 13.239121432
