View larger
Images are for illustrative purposes only. Please refer to data sheet for details

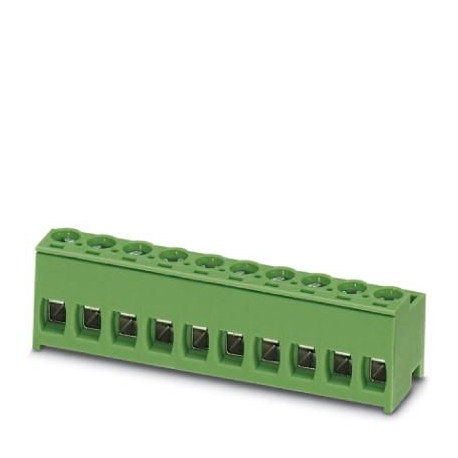

PT 1,5/10-PH-5,0 BK BDWH:1-10 1711794 PHOENIX CONTACT PCB terminal block
PT 1,5/10-PH-5,0 BK BDWH:1-10
1711794
PHOENIX CONTACT
100 Pcs.
PCB terminal block
Connector for printed circuit board, nominal section: 1.5 mm², color: black, nominal current: 10 A, dimensioning voltage (III/2): 400 V, contact surface: Tin, contact type: Female connection, Number of potentials: 10, Number of rows: 1, Number of poles per row: 10, number of connections: 10, family of articles: PT 1.5/.. -PH, pitch: 5 mm, connection type: Screw connection with traction capsule, connection direction conductor/printed circuit board: 0 °, Stecksystem: COMBICON COMPACT PST 1.3, Lock: without, packaging type: boxed
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | PT 1,5/..-PH |
|---|---|
| Number of positions | 10 |
| Connection method | Screw connection with tension sleeve |
| Insulating material group | I |
| Rated voltage (III/2) | 400 V |
| Nominal current IN | 10 A |
| Nominal cross section | 1.5 mm² |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
