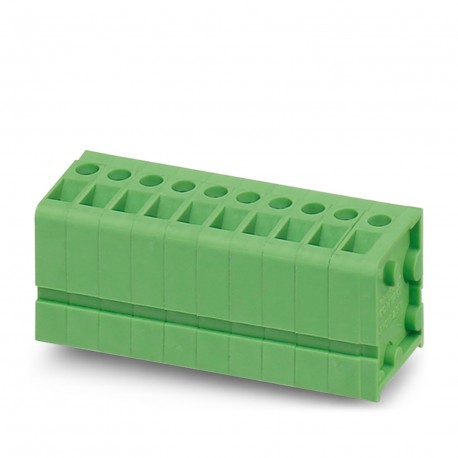

PHOENIX CONTACT FRONT 2,5-V/SA 5/10 BK FRONT 2,5-V/SA 5/10 BK 1109601 PHOENIX CONTACT PCB terminal block, pitch: 5 mm, number of positions: 10, col.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FRONT 2,5-V/SA 5/10 BK 1109601 PHOENIX CONTACT PCB terminal block, pitch: 5 mm, number of positions: 10, col..

FRONT 2,5-V/SA 5/10 BK

1109601

PHOENIX CONTACT

20 Pcs.

PCB terminal block, pitch: 5 mm, number of positions: 10, color: black, Pin layout: Linear double pinning, Solder pin [P]: 3.5 mm Printed circuit board terminal block, rated current: 24 A, rated voltage (III/2): 400 V, rated cross-section: 2.5 mm², number of rows: 1, number of poles per row: 10, article family: FRONT 2.5-V/SA 5, pitch: 5 mm, connection type: Front screw connection, mounting: Wave soldering, driver/printed circuit board connection direction: 90 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1109601
Packing unit1
GTIN4063151021856
Custom tariff number85369010

Item properties

Number of positions10
Pin layoutLinear double pinning
Back to top

Dimensions for the product

Length [ l ]18.5 mm
Width [ w ]52.5 mm
Height [ h ]31 mm
Pitch5 mm
Height (without solder pin)20 mm
Solder pin [P]3.5 mm
Pin spacing5 mm
Dimension a45 mm
Back to top

Dimensions for PCB design

Hole diameter1.2 mm
Pin spacing5 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package20
Denomination packing unitsPcs.
Back to top

Classifications

eCl@ss

eCl@ss 8.027440401
eCl@ss 9.027440401
Back to top

ETIM

ETIM 5.0EC002643
Back to top

ETIM for 1109601 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 31 mm
Number of electrical connections (EF008252) 10
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
