PHOENIX CONTACT CC 2,5/ 8-GF-5,08 P26 THR AU CC 2,5/ 8-GF-5,08 P26 THR AU 1703100 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

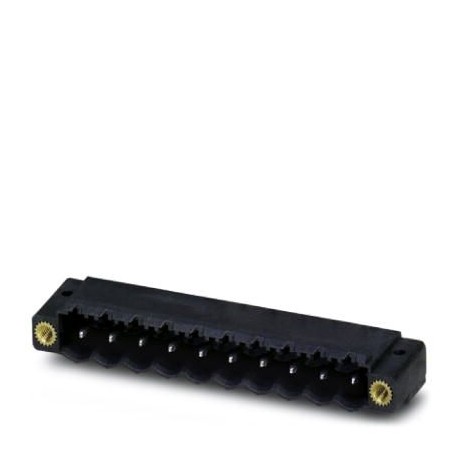

CC 2,5/ 8-GF-5,08 P26 THR AU 1703100 PHOENIX CONTACT Printed-circuit board connector

CC 2,5/ 8-GF-5,08 P26 THR AU

1703100

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Male, number of rows: 1, number of poles: 8, family of articles: DC 2.5/.. -GF, pitch: 5.08 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Screw lock, fastening type: Aerial clamping (thread), packaging type: boxed, More user information and design recommendations on Through Hole Reflow technology can be found at: Downloads

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1703100
Packing unit1
GTIN4046356635097
Custom tariff number85366930

Dimensions

Length [ l ]12 mm
Width50.8 mm
Pitch5.08 mm
Dimension a35.56 mm
Width [ w ]50.8 mm
Height [ h ]11.2 mm
Height8.6 mm
Length of the solder pin2.6 mm
Pin dimensions1 x 1 mm
Pin spacing5.08 mm
Length12 mm

General

Range of articlesCC 2,5/..-GF
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A (per position)
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions8

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
