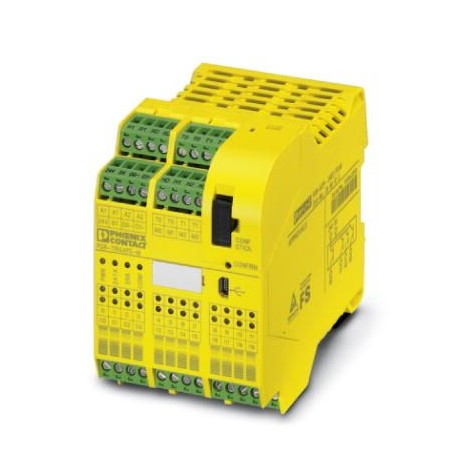

PSR-SCP- 24DC/TS/M 2986012 PHOENIX CONTACT Safety module

PSR-SCP-24DC/TS/M

2986012

PHOENIX CONTACT

1 Pcs.

Safety module Freely configurable safety module with 20 safe inputs and 4 safe outputs; 4 warning switching outputs, 2 cycle outputs and 2 ground switching outputs; expandable with additional I/A modules, up to SIL 3, cat. 4/PL e, SIL 3, EN 50156, plug-in screw terminals

Automation > Device for monitoring of safety-related circuits
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2986012
Packing unit1 pc
Catalog pagePage 293 (C-6-2017)
GTIN4046356346979
Weight per Piece (excluding packing)154.000 g
Custom tariff number85371098
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width67.5 mm
Height99 mm
Depth114.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 55 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Max. permissible relative humidity (operation)75 % (On average, 85 % occasionally)
Max. permissible humidity (storage/transport)75 % (On average, 85 % occasionally)
Air pressure (operation)70 kPa ... 108 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)66 kPa ... 108 kPa (up to 3500 m above sea level)
Maximum altitudemax. 2000 m (See Appendix "Using PSR-TRISAFE modules at altitudes greater than 2000 m above sea level")

Power supply

Rated control circuit supply voltage US24 V DC (A1/A2)
18 V DC ... 30 V DC (Incl. all tolerances, incl. residual ripple)
Rated control supply current IStyp. 110 mA
Limiting continuous currentmax. 6 A (For looped-through current paths A1/A1 and A2/A2)
Filter timetyp. 20 ms (Load-dependent, in the event of voltage dips at US)
Status display3x LED green, 1x LED red
Protective circuitYes, within the scope of the operating voltage limits

Digital inputs

Description of the inputDigital, type HTL
Number of inputs10 (Two-channel, up to SIL 3)
20 (Single-channel, up to SIL 2)
Input voltage range "0" signal0 V DC ... 5 V DC (for safe Off)
Input voltage range "1" signal11 V DC ... 30 V DC
Current consumptiontyp. 4 mA
Cable lengthmax. 2000 m
Status display20 x LED green (1 LED per input)

Digital outputs

Number of outputs4 (Safe semiconductor outputs, up to Cat. 4 in accordance with EN ISO 13849-1)
2 (Ground switching outputs)
Nominal output voltage24 V DC (Supply via 24 V/0 V)
Nominal output voltage range18 V DC ... 30 V DC (Incl. all tolerances, incl. residual ripple)
Limiting continuous current2 A (Per channel, see Derating)
2 A (Total current of all outputs)
Output voltage< 5 V (Low state)
Leakage currentmax. 2 mA
Max. capacitive loadmax. 1 µF (Electronic components)
Max. inductive loadSee "Protective circuit"
Test pulses< 1 ms
Note on protection circuitYes, within the scope of the operating voltage limits
Short-circuit protectionYes
Status display4 x LED green (1 LED per output)

Clock outputs

Output descriptionDigital
Number of outputs2
Voltage24 V DC (Supply via 24 V/0 V)
Limiting continuous current100 mA
Test pulses< 1 ms
Short-circuit protectionYes

Alarm outputs

Output descriptionDigital
Number of outputs4
Voltage24 V DC (Supply via 24 V/0 V)
Limiting continuous current100 mA
Short-circuit protectionYes

Times

Response timemax. 30 ms (plus response time of PSR-TS-SDOR4)
Recovery time< 10 s

General

Nominal operating mode100% operating factor
Net weight154 g
Mounting positionOn horizontal DIN rail
Mounting typeDIN rail mounting
Degree of protectionIP20
IP54
Min. degree of protection of inst. locationIP54
Housing materialPolyamide PA non-reinforced
Housing coloryellow
Number of possible extension modules1 (Max. continuous current via PSR-TBUS: 4 A)
Number of possible safe extension modules10 (Max. continuous current via PSR-TBUS: 4 A)

Connection data

Connection methodScrew connection
pluggableYes
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length7 mm
Screw threadM3
Torque0.5 Nm ... 0.6 Nm
5 lbf-in. ... 7 lbf-in.

Safety-related characteristic data

Stop category0
DesignationIEC 61508 - High demand
Safety Integrity Level (SIL)2 (1-channel parameterization)
3 (2-channel parameterization)
DesignationIEC 61508 - Low demand
Safety Integrity Level (SIL)2 (1-channel parameterization)
3 (2-channel parameterization)
DesignationEN ISO 13849
Performance level (PL)d (1-channel parameterization)
e (2-channel parameterization)
Category2 (1-channel parameterization)
4 (2-channel parameterization)
DesignationEN 62061
Safety Integrity Level Claim Limit (SIL CL)2 (1-channel parameterization)
3 (2-channel parameterization)
DesignationEN 50156
Safety Integrity Level (SIL)max. 3 (Reference IEC 61508)

Standards and Regulations

DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsDIN EN 50178
Degree of pollution2
Overvoltage categoryIII
Vibration (operation)2g
Shock (operation)10g (Δt = 11 ms, three shocks in each space direction)
10g (Δt = 16 ms, continuous shock, 1000 shocks in each space direction)

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications
