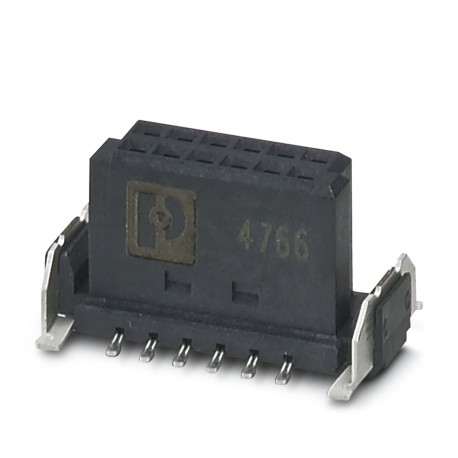

PHOENIX CONTACT FP 1,27/ 68-FV 6,25 FP 1,27/ 68-FV 6,25 1714899 PHOENIX CONTACT Plug, SMD, rated Current to 20A °C: 1.4 A, test Voltage: 500 V A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FP 1,27/ 68-FV 6,25 1714899 PHOENIX CONTACT Plug, SMD, rated Current to 20A °C: 1.4 A, test Voltage: 500 V A..

FP 1,27/ 68-FV 6,25

1714899

PHOENIX CONTACT

280 Pcs.

Plug, SMD, rated Current to 20A °C: 1.4 A, test Voltage: 500 V AC, number of poles: 68, pitch: 1.27 mm, color: black, surface contacts: Gold, assembly: Soldering SMD SMD plug pin, rated current: 1.4 A, Test voltage: 500 V AC, number of poles: 68, pitch: 1.27 mm, color: black, contact surface: Gold, contact type: Female connection, mounting: SMD welding SMD socket, rated current: 1.4 A, Test voltage: 500 V AC, number of poles: 68, pitch: 1.27 mm, colour: black, contact surface: Au, contact connection type: Female, mounting: SMD soldering

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Article features
Product TypeSMD Socket
Product FamilyFR 1.27/...-FV 6.25
Number of poles68
Step1.27 mm
Number of rows2
Number of potentials68
Pin LayoutLinear Pad Geometry
Data maintenance status
Article review00
Electrical characteristics
Rated Current IN1.4 A IEC 60512-5-2:2002-02 (at 20 °C at 50 poles)
Mass Resistivity25 mΩ
Test voltage500 V AC IEC 60512-4-1:2003
Montage
Mounting typeSMD Soldering
Pin LayoutLinear Pad Geometry
Processing Instructions
ProcessReflow soldering
Moisture Sensitive LevelMSL 1
Classification Temperature Tc260 °C
Material information
Material information - contacts
noteComplies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu Alloy
Surface FinishSelective Coating
Metal surface contact zone (surface layer)Gold (Au)
Metal surface contact area (middle layer)Nickel (Ni) Palladium-nickel, (PdNi)
Metal Surface Welding Area (Surface Layer)Pond (Sn)
Material information - case
Color (Case)Black (9005)
Insulation materialLCP
Insulation Material GroupIIIb
CTI according to IEC 60112175
Combustibility class according to UL 94V0
Notes
Note for OperationThe permissible voltage during operation is deduced according to the application by considering creepage and creepage distances within the scope of the insulation requirements according to IEC 60664-1.
dimensions
Dimensioned Drawingdvbtjqggdc.jpg
Step1.27 mm
Width [w]48.27 mm
Height [h]6.95 mm
Length [l]7.2 mm
Installation Height6.25 mm
Application
Contact Coverage0.9 mm
Moving the wheelbase± 0.7 mm in longitudinal and transverse axis
Stacked Height8 mm Tolerance: +1.5 mm (in combination with Family Item:FP 1.27/...-MV 1.75)
9.5 mm Tolerance: +1.5 mm (in combination with Article Family:FP 1.27/...-MV 3.25)
Connection Length1.5 mm
Angular Tolerance± 4° in longitudinal axis
± 2° in transverse axis
Printed circuit board design
Pad Geometry0.8 x 1.1 mm
Shank Distance1.27 mm
Mechanical Controls
Insertion/tensile force
ResultTest passed
Number of cycles500
Insertion force per pole approx.0.5 N
Tensile force per pole approx.0.5 N
Resistance of lettering
Test SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Visual inspection
Test SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimensional control
Test SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Electrical Controls
Thermal Test Control Group C
Test SpecificationIEC 60512-5-2:2002-02
Number of poles tested50
Insulation Resistance
Test SpecificationIEC 60512-3-1:2002-02
Insulation Resistance Between Contiguous Poles≥ 10 GΩ
Creepage and Creepage Distances
Insulation Material GroupIIIb
Minimum value of air and surface distances0.4 mm
Environmental and electrical life conditions
Vibration test
Test SpecificationIEC 60068-2-6:2007-12
Frequency10 - 2000 - 10 Hz
Sweep Speed1 octave/min
Amplitude1.5 mm (10 Hz ... 60.1 Hz)
Acceleration20g (60.1 Hz ... 2000 Hz)
Test duration per axle2.5 h
Test DirectionsX, Y, and Z axis
Electrical life control
Test SpecificationIEC 60512-9-1:2010-03 (standard)
Vertical impulse tension above sea level0.8 kV
Mass Resistivity R125 mΩ
Mass Resistivity R225 mΩ
Manoeuvring cycles500
Insulation Resistance Between Contiguous Poles≥ 10 GΩ
Climate control
Test SpecificationIEC 60512-11-7:2003-05
Stress due to corrosionMethod 1, 10 days
Fixed AC voltage500 V AC
Shock
Test SpecificationIEC 60068-2-27:2008-02
Shock FormSemi-sinusoidal
Acceleration50g
Shock Duration11 ms
Test DirectionsX, Y and Z axis (pos. and neg.)
Environmental conditions
Ambient temperature (operating)-55 °C ... 125 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (transport and storage)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Packaging Information
Dimensioned Drawingckrmjeflhr.jpg
PackagingTape width 72 mm
Belt width [W]72 mm
Coil external size [W2]78.4 mm
Coil diameter [A]330 mm
Type of packagingTransparent bag
ESD Level(D) Anti-static
Test SpecificationDIN EN 61340-5-1 (VDE 0300-5-1): 2008-07
