View larger
Images are for illustrative purposes only. Please refer to data sheet for details

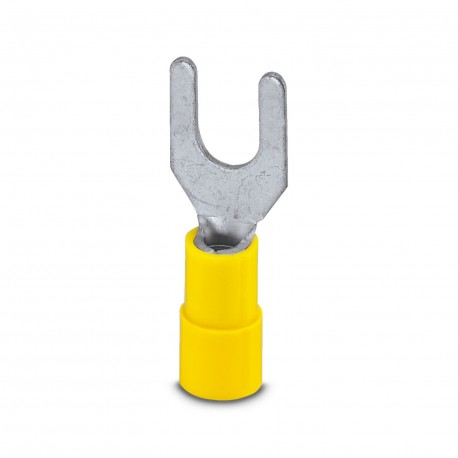

C-FCI 6/M6 3240044 PHOENIX CONTACT Fork-type cable lug
C-FCI 6/M6
3240044
PHOENIX CONTACT
25 Pcs.
Fork-type cable lug
Fork tip, yellow, 4 - 6 mm², M6
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240044 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| Catalog page | Page 495 (C-3-2017) |
| GTIN | 4046356452618 |
| Weight per Piece (excluding packing) | 2.210 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Dimensions
| Length (b) | 30.3 mm |
|---|---|
| Width (a) | 12 mm |
| Maximum stripping length | 9 mm |
| Length of insulation sleeve (c) | 14 mm |
| Inner dimension of the insulating collar (d) | 6.6 mm |
| Distance between the center and the insulation sleeve (e) | 9.9 mm |
| Inner diameter (f) | 6.5 mm |
| Material thickness (g) | 1 mm |
General
| Color | yellow |
|---|---|
| Stripping length | 9 mm |
| Components | halogen-free |
| Flammability rating according to UL 94 | V2 |
| Material | Copper |
| Insulating material | PA |
| Coating | tin-plated |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060701eCl@ss 4.127060701eCl@ss 5.027400201eCl@ss 5.127400200eCl@ss 6.027400200eCl@ss 7.027400204eCl@ss 8.027400204eCl@ss 9.027400204
| Feature Name | Feature Value |
|---|---|
| Flange shape (EF001339) | Fork shape |
| Nominal cross section (EF005124) | 4 mm² |
| Material (EF002169) | Copper |
