View larger
Images are for illustrative purposes only. Please refer to data sheet for details

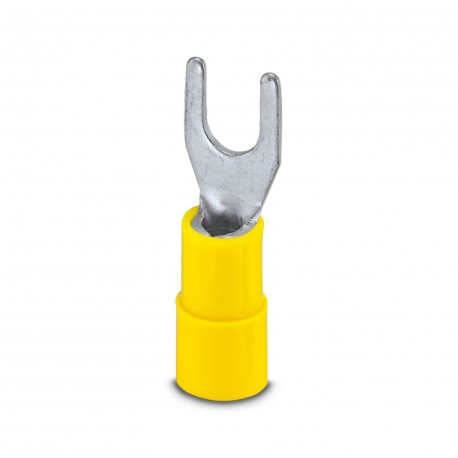

C-FCI 6/M5 3240043 PHOENIX CONTACT Fork-type cable lug
C-FCI 6/M5
3240043
PHOENIX CONTACT
50 Pcs.
Fork-type cable lug
Fork tip, yellow, 4 - 6 mm², M5
Fork-type cable lug, yellow, 4 - 6 mm2, M5
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Connector |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Fuse | yes |
Dimensions
| Dimensional drawing |  |
| Width | 9 mm |
| Sleeve length | 26.7 mm |
| Length of the insulating material sleeve | 14 mm |
| Maximum stripping length | 9 mm |
| Distance from the center to the insulating material sleeve | 8 mm |
| Min. material thickness | 1 mm |
| Inner dimensions of the insulating collar | 6.6 mm |
| Internal dimensions | |
| Internal diameter | 5.3 mm |
Material specifications
| Color | yellow (RAL 1018) |
| Material | Copper |
| Flammability rating according to UL 94 | V2 |
| Coating | tin-plated |
| Insulating material | PA |
| Components | halogen-free |
Mechanical properties
| Technical data | |
| Sleeve length | 26.7 mm |
| Feature Name | Feature Value |
|---|---|
| Flange shape (EF001339) | Fork shape |
| Nominal cross section (EF005124) | 4 mm² |
| Material (EF002169) | Copper |
