View larger
Images are for illustrative purposes only. Please refer to data sheet for details

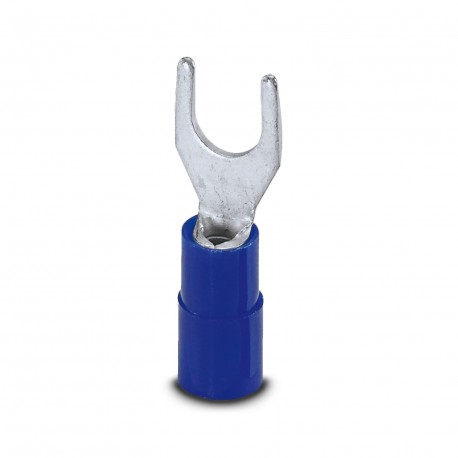

C-FCI 2,5/M5 3240040 PHOENIX CONTACT Fork-type cable lug
C-FCI 2,5/M5
3240040
PHOENIX CONTACT
50 Pcs.
Fork-type cable lug
Ring wire lug, blue, 1.5 - 2.5 mm², M5
Fork-type cable lug, blue, 1.5 - 2.5 mm2, M5
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Connector |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Fuse | yes |
Dimensions
| Dimensional drawing |  |
| Width | 8 mm |
| Sleeve length | 22 mm |
| Length of the insulating material sleeve | 11 mm |
| Maximum stripping length | 8 mm |
| Distance from the center to the insulating material sleeve | 6.5 mm |
| Min. material thickness | 0.8 mm |
| Inner dimensions of the insulating collar | 4.5 mm |
| Internal dimensions | |
| Internal diameter | 5.3 mm |
Material specifications
| Color | blue (RAL 5015) |
| Material | Copper |
| Flammability rating according to UL 94 | V2 |
| Coating | tin-plated |
| Insulating material | PA |
| Components | halogen-free |
Mechanical properties
| Technical data | |
| Sleeve length | 22 mm |
| Feature Name | Feature Value |
|---|---|
| Flange shape (EF001339) | Fork shape |
| Nominal cross section (EF005124) | 1.5 mm² |
| Material (EF002169) | Copper |
