View larger
Images are for illustrative purposes only. Please refer to data sheet for details

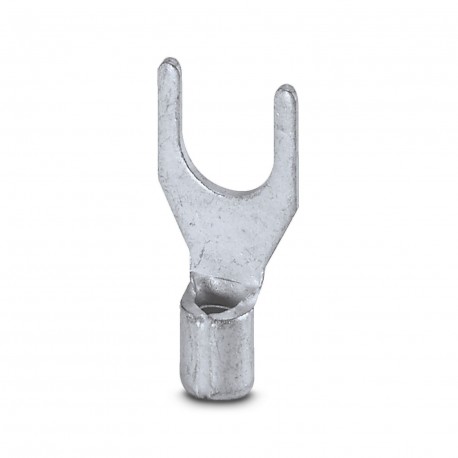

C-FC 2,5/M5 3240145 PHOENIX CONTACT Fork-type cable lug
C-FC 2,5/M5
3240145
PHOENIX CONTACT
100 Pcs.
Fork-type cable lug
Fork tip, uninsulated, 1.1 - 2.5 mm², M5
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240145 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 494 (C-3-2017) |
| GTIN | 4046356453622 |
| Weight per Piece (excluding packing) | 0.670 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Dimensions
| Length (b) | 16 mm |
|---|---|
| Width (a) | 8 mm |
| Maximum stripping length | 8 mm |
| Length of insulation sleeve (c) | 4.8 mm |
| Inner dimension of the insulating collar (d) | 2.5 mm |
| Distance between the center and the insulation sleeve (e) | 6.5 mm |
| Inner diameter (f) | 5.3 mm |
| Material thickness (g) | 0.8 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
