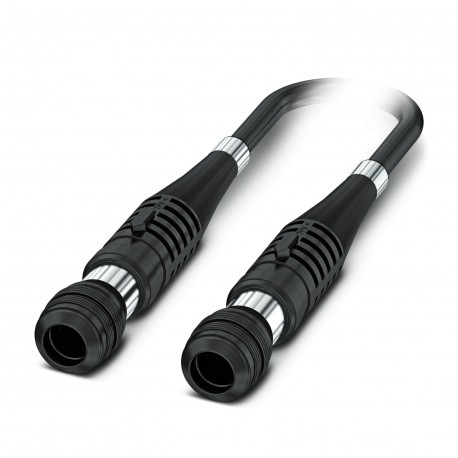

FOC-OP12-OP12-GL02/60 1415230 PHOENIX CONTACT Connecting cable
FOC-OP12-OP12-GL02/60
1415230
PHOENIX CONTACT
10 Pcs.
Connecting cable
Ready-made double-sided cable, type: circular connector, protection index: IP68, number of poles: 12
Connectors > Modular connector (industrial connector)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1415230 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626045740 |
| Weight per Piece (excluding packing) | 3,245.000 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Mechanical characteristics
| Number of positions | 12 |
|---|---|
| Fiber type | GOF |
| Cable diameter | 7.00 mm |
| Type of cable | Loose Tube |
| Degree of protection | IP68 (IEC 60529) |
| IP68 |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C (IEC 61300-2-22) |
|---|---|
| Degree of protection | IP68 |
| IP68 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Outer sheath, material | LSFH |
| External sheath, color | black |
Standards and Regulations
| Halogen-free | complying with IEC 60754-1/2 |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Shock | 50g, in accordance with IEC 61300-2-9 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
