View larger
Images are for illustrative purposes only. Please refer to data sheet for details

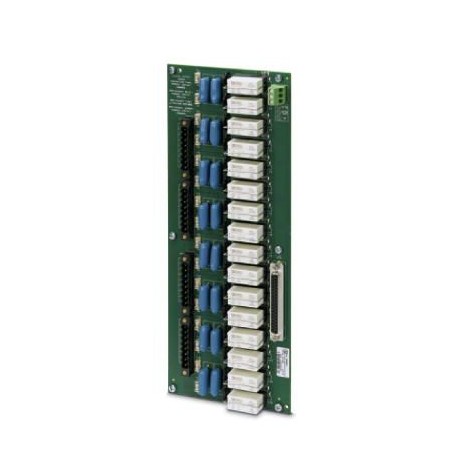

FLX-D37F/16RSC/24DC/DO/TDC3K 2908891 PHOENIX CONTACT Active module
FLX-D37F/16RSC/24DC/DO/TDC3K
2908891
PHOENIX CONTACT
1 Pcs.
Active module
Transfer module for TDC3000 conversion to modern control platforms, digital output, 16 channels with relay
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2908891 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626733081 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85176200 |
| Country of origin | US (United States) |
Note
| Trade restriction | The products are offered exclusively for export outside the EU and the European Economic Area. |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Typical input current at UN | 20 mA |
| Typical response time | 8 ms |
| Typical release time | 10 ms |
| Type of protection | Free-wheeling diode |
| Protective circuit/component | Damping diode |
Output data
| Contact type | 1 PDT |
|---|---|
| Contact material | AgNi |
| Maximum switching voltage | 125 V AC/DC |
| Minimum switching voltage | 12 V |
| Limiting continuous current | 5 A (fuse limited) |
| Min. switching current | 10 mA (at 12 V) |
| Interrupting rating (ohmic load) max. | 120 W (at 24 V DC) |
| 58 W (at 48 V DC) | |
| 48 W (at 60 V DC) | |
| 50 W (110 V DC) | |
| 600 VA (120 V AC) | |
| Error detection (line break / short-circuit) | no |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 1 |
| Number of positions | 37 |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, control sided (EF008549) | D-Sub |
| Number of poles (EF001391) | 37 |
| Rated voltage (EF000228) | 24 V |
| Rated current (EF000227) | 0.02 A |
| Depth (EF000049) | 46.7 mm |
| Width (EF000008) | 307.3 mm |
| Height (EF000040) | 120.7 mm |
