View larger
Images are for illustrative purposes only. Please refer to data sheet for details

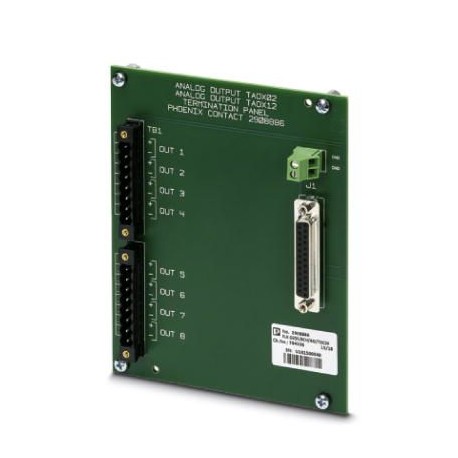

FLX-D25F/8CH/AO/TDC3K 2908886 PHOENIX CONTACT Interface module
FLX-D25F/8CH/AO/TDC3K
2908886
PHOENIX CONTACT
2 Pcs.
Interface module
Transfer module for conversion of TDC3000 to modern control platforms, analog output, 8 channels
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2908886 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 2 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626477909 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85176200 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | pluggable |
| Channels which can be connected | 8 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 1 |
| Number of positions | 25 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, control sided (EF008549) | D-Sub |
| Number of poles (EF001391) | 25 |
| Rated voltage (EF000228) | 30 V |
| Rated current (EF000227) | 0.5 A |
| Depth (EF000049) | 38.3 mm |
| Width (EF000008) | 152.4 mm |
| Height (EF000040) | 120.7 mm |
