View larger
Images are for illustrative purposes only. Please refer to data sheet for details

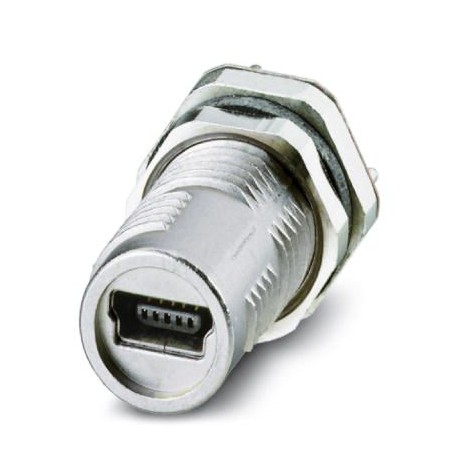

VS-EC-MSDB SH SCO 1440711 PHOENIX CONTACT Panel feed-through
VS-EC-MSDB SH SCO
1440711
PHOENIX CONTACT
20 Pcs.
Panel feed-through
Conect. plug. to be apar. front wall, 4-pole, Connecting female, straight, M12-SPEEDCON, Front wall mounting, M12 x 1, Welding pins, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) Item code: 1239709
Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1440711 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Catalog page | Page 205 (C-2-2013) |
| GTIN | 4046356554053 |
| Weight per Piece (excluding packing) | 11.180 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP67 |
General
| Rated current at 40°C | 1 A |
|---|---|
| Rated voltage | 30 V |
| Number of positions | 4 |
| Connection method | Solder pins |
| Insertion/withdrawal cycles | ≥ 100 |
| Mounting type | Rear mounting M12 x 1 With locking nut |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | Cu alloy |
| Contact surface material | Gold over nickel |
| Material, knurls | Zinc die-cast, nickel-plated |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 4 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 1 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 30 V |
| Material of contact surface (EF004020) | Gold |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Min. number of insertion cycles (EF012212) | 100 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
