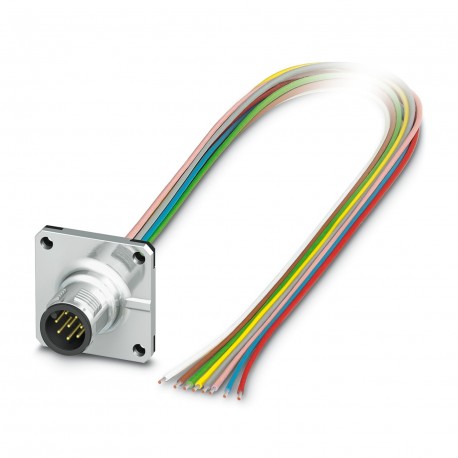

PHOENIX CONTACT SACC-SQ-M12MS-8CON-25F/0,5 SACC-SQ-M12MS-8CON-25F/0,5 1441561 PHOENIX CONTACT Sensor/Actuator flush-type plug, 8-pos., M12, A-coded, fr.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-SQ-M12MS-8CON-25F/0,5 1441561 PHOENIX CONTACT Sensor/Actuator flush-type plug, 8-pos., M12, A-coded, fr..

SACC-SQ-M12MS-8CON-25F/0,5

1441561

PHOENIX CONTACT

1 Pcs.

Sensor/Actuator flush-type plug, 8-pos., M12, A-coded, front/square flange mounting, with 0.5 m TPE litz wire, 8 x 0.25 mm² Conect. plug. to be apar. front wall, 8-pole, Male connector, straight, M12, coding: A, free cable end, Front mounting, Square flange, Single stranded wires, cable length: 0.5 m, 0.25 mm², TPE braided wire, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239721 Device connector front mounting, 8-position, Pin, straight, M12, coding: A, on free cable end, Front mounting, Square flange, Individual wires, cable length: 0.5 m, 0.25 mm2, TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239721

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
GeneralContact connection method: Crimp connection
Mounting
Mounting typeFront mounting Square flange
Product properties
Product typeCircular connectors (device side)
ApplicationSignal
Number of positions8
No. of cable outlets1
Shieldedno
CodingA
Thread typeM12
Data management status
Article revision07
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94V0
Seal materialFKM
Material of grip bodyZinc die-cast, nickel-plated
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated
Conductor materialTin-plated Cu litz wires
Electrical properties
Rated surge voltage0.8 kV
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V
Nominal current IN2 A
Max. conductor resistance80 mΩ/m
Connection data
Conductor connection
Connection methodIndividual wires
Contact connection typePin
Conductor cross section0.25 mm²
Tightening torque3 Nm ... 4 Nm (Installation-side)
Mechanical properties
Mechanical data
Insertion/withdrawal cycles> 100
Connector
Connection 1
Head designPin
Head cable outletstraight
Head thread typeM12
CodingA
Connection 2
Head designfree cable end
Cable/line
Cable length0.5 m
Cable typeTPE litz wire
Wire diameter incl. insulation1.15 mm ±0.07 mm
Single wire, colorbrown, blue, white, gray, pink, green, yellow, red
Cable cross section0.25 mm²
Conductor materialTin-plated Cu litz wires
Conductor structure signal line14x 0.15 mm
AWG signal line24
Material wire insulationTPE
Thickness, insulation0.21 mm (Core insulation)
Nominal voltage, cable300 V
Test voltage, cable3000 V AC (Spark test)
Cable resistance≤ 80 mΩ/m
Cable insulation resistance≥ 20 MΩ*km
Ambient temperature (operation)-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP67
IP67
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
-25 °C ... 85 °C (Cable, flexible installation)
-40 °C ... 85 °C (cable, fixed installation)
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1441561 Connectors (EC003570)
Feature Name Feature Value
Cable length (EF000536) 0.5 mm
Type of plug-in contact, outer side (EF005528) None
Mounting method (EF000003) Front mounting
Housing material (EF001596) Other
Material core insulation (EF000061) Other
Material of contact surface (EF004020) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Ambient temperature (EF002386) 85 °C
Operating temperature (EF002393) -25 °C
Rated voltage (EF000228) 30 V
With shield connection (EF002535) No
Screw-in thread (EF012303) M12
Core cross section (EF000018) 0.25 mm²
Min. number of insertion cycles (EF012212) 100
Degree of protection (IP), mounted (EF007466) IP67
