View larger
Images are for illustrative purposes only. Please refer to data sheet for details

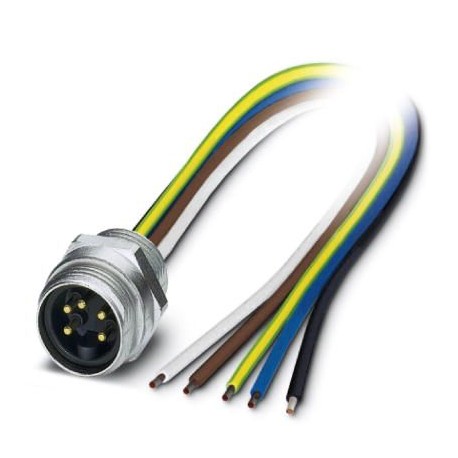

SACC-E-MINMS-5CON-PG13/0,5 1521452 PHOENIX CONTACT Flush-type connector
SACC-E-MINMS-5CON-PG13/0,5
1521452
PHOENIX CONTACT
1 Pcs.
Flush-type connector
Conn. plug. Incorp. e.g. sensors/actuators, 5 poles, 7/8", front wall c. Pg13.5 thread, w. braid wire. PVC 0.5 m, 5 x 0.75 mm²
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1521452 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 49 (C-4-2015) |
| GTIN | 4017918949679 |
| Weight per Piece (excluding packing) | 52.100 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated current at 40°C | 9 A |
|---|---|
| Rated voltage | 250 V |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Individual wires |
| Mounting type | Front mounting Pg13.5 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PUR |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | Viton |
Cable
| Cable type | PVC litz wire |
|---|---|
| Conductor cross section | 0.75 mm² |
| AWG signal line | 18 |
| Conductor structure signal line | 24x 0.20 mm |
| Core diameter including insulation | 2.7 mm |
| Thickness, insulation | 0.85 mm (Core insulation) |
| Wire colors | brown, white, blue, black, green-yellow |
| Material conductor insulation | PE |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 25; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140815eCl@ss 4.127140815eCl@ss 5.027143423eCl@ss 5.127143400eCl@ss 6.027279200eCl@ss 7.027440103eCl@ss 8.027440103eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 5 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 9 A |
| Ambient temperature (EF002386) | -40 °C |
| Rated voltage (EF000228) | 250 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Material of contact surface (EF004020) | Gold |
| Housing material (EF001596) | Plastic |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
