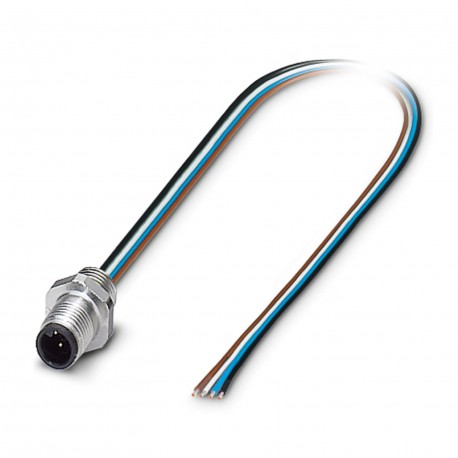

PHOENIX CONTACT SACC-E-M5MS-4CON-M5/0,5 SACC-E-M5MS-4CON-M5/0,5 1530595 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-E-M5MS-4CON-M5/0,5 1530595 PHOENIX CONTACT Flush-type connector

SACC-E-M5MS-4CON-M5/0,5

1530595

PHOENIX CONTACT

1 Pcs.

Flush-type connector Conect. plug. to be apar. front wall, 4-pole, Male connector, straight, M5, Front mounting, M5 x 0.5, Single stranded wires, cable length: 0.5 m, 0.14 mm², TPE braided wire

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1530595
Packing unit1 pc
Catalog pagePage 30 (C-2-2017)
GTIN4046356024396
Weight per Piece (excluding packing)7.900 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable0.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug)
Degree of protectionIP67

General

Rated current at 40°C1 A
Rated voltage60 V
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM5 connector IEC 61076-2-105
Status displayNo
Overvoltage categoryII
Degree of pollution3
Test voltage800 V
Connection methodIndividual wires
Mounting typeFront mounting M5 x 0.5

Material

Flammability rating according to UL 94HB
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsNickel-plated brass
Sealing materialViton

Cable

Cable typeTPE litz wire
Conductor cross section0.14 mm²
AWG signal line26
Conductor structure signal line18x 0.10 mm
Wire colorsbrown, white, blue, black
Material conductor insulationTPE
Standards/specificationsM5 connector IEC 61076-2-105
Ambient temperature (operation)-25 °C ... 80 °C

Standards and Regulations

Standard designationM5 connector
Standards/regulationsIEC 61076-2-105
Flammability rating according to UL 94HB

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1530595 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 4
Type of housing (EF006980) Straight
Rated current In (EF008250) 1 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 48 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) HB
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Screened (EF000881) No
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
