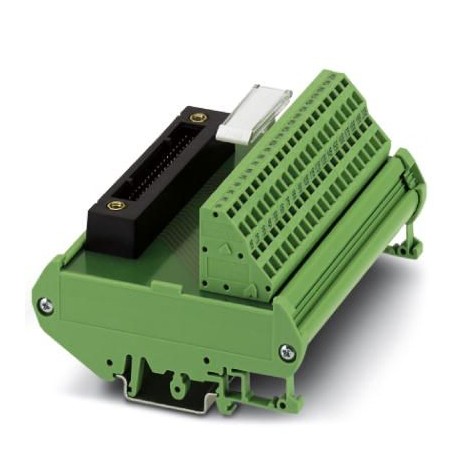

PHOENIX CONTACT FLKM-KS40/YCS/ZFKDS FLKM-KS40/YCS/ZFKDS 2314723 PHOENIX CONTACT Passive module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLKM-KS40/YCS/ZFKDS 2314723 PHOENIX CONTACT Passive module

FLKM-KS40/YCS/ZFKDS

2314723

PHOENIX CONTACT

1 Pcs.

Passive module Universal interconnection module with 1:1 connection between 40-pole system connection and system connection.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2314723
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4046356155007
Weight per Piece (excluding packing)211.200 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width112 mm
Height90 mm
Depth68 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage30 V AC/DC
Max. perm. current (per branch)1 A
Max. permissible current (separate power supply)4 A
Status displayNo
Mounting positionany
Assembly instructionsIn rows with zero spacing

Connection data for connection 1

Connection nameField level
Connection methodSpring-cage connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodYokogawa KS-compatible
Torque0.5 Nm
Number of connections1
Number of positions40

Supported controller

ControllerYOKOGAWA CS3000 CentumVP
- suitable I/O cardAAV141
AAV142
AAI141
AAI143
AAV542
AAI543
AAI135
AAI835
AAP135
AAT141
AAR181
AAB841
ControllerYOKOGAWA STARDOM
- suitable I/O cardNFAI141
NFAI43
NFAI543
NFAI135
NFAP135
NFAV141
NFAV142
NFAV542
NFAB841
NFAI841
NFAI835

Standards and Regulations

Standards/regulationsDIN EN 50178
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2314723 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Spring clamp connection
Number of poles (EF001391) 40
Rated voltage (EF000228) 30 V
Rated current (EF000227) 1 A
Depth (EF000049) 59.7 mm
Width (EF000008) 112 mm
Height (EF000040) 89.6 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
