> PHOENIX CONTACT > INTERFACE Components (IF) > 2291561

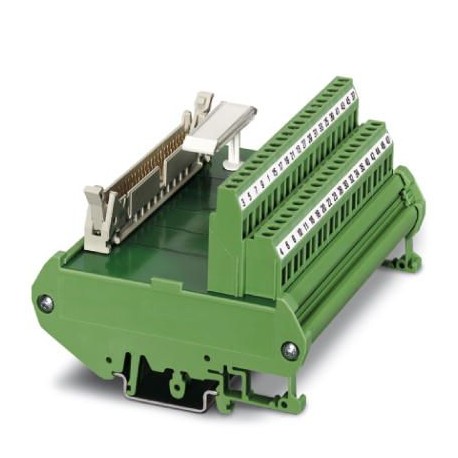

PHOENIX CONTACT FLKM 50/1-40 FLKM 50/1-40 2291561 PHOENIX CONTACT Passive module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLKM 50/1-40 2291561 PHOENIX CONTACT Passive module

FLKM 50/1-40

2291561

PHOENIX CONTACT

1 Pcs.

Passive module VARIOFACE interconnect module for Siemens SIMATIC® S7-300, with SIMATIC-specific® marking (1 - 40), screw connection, module width: 113 mm

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2291561
Packing unit1 pc
Catalog pagePage 197 (IF-2007)
GTIN4017918270438
Weight per Piece (excluding packing)249.500 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width113 mm
Height90 mm
Depth68 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage< 50 V AC
60 V DC
Max. perm. current (per branch)1 A
Max. permissible current (separate power supply)2 A (per byte)
Number of positions50
Mounting positionany
Degree of protectionIP00

Connection data for connection 1

Connection nameField level
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Number of positions42

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage63 V
Rated surge voltage0.6 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2291561 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 50
Rated voltage (EF000228) 30 V
Rated current (EF000227) 1 A
Depth (EF000049) 68 mm
Width (EF000008) 113 mm
Height (EF000040) 90 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
