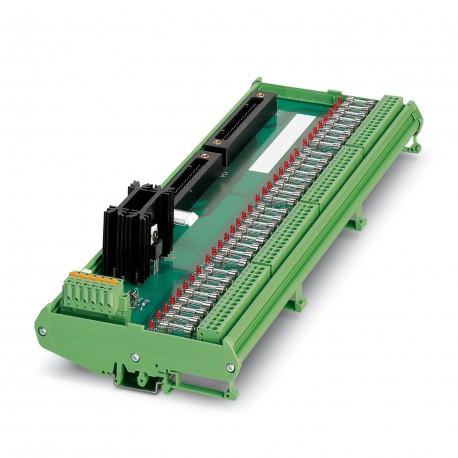

FLKM-2KS50/BFI/MKDS/CS 2900162 PHOENIX CONTACT Passive module

FLKM-2KS50/BFI/MKDS/CS

2900162

PHOENIX CONTACT

1 Pcs.

Passive module Interconnect module for Yokogawa ADV 151, ADV 161, ADV 551 and ADV 561 I/O cards with one fuse (5 x 20) and fuse fault indication (LED) per channel. Redundant system connection. Termination board for Yokogawa ADV 151, ADV 161, ADV 551 and ADV 561 I/O modules with a fuse for cable protection (5 x 20) and fuse failure display (LED) per channel. Redundant system connection.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
No. of channels32
Operating mode100% operating factor
Data management status
Article revision04
Insulation characteristics
InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2
Electrical properties
Nominal voltage UN24 V DC
19.2 V DC ... 26.4 V DC
Max. current carrying capacity per branch100 mA (observe derating)
Max. total current of all branches4 A (observe derating)
Rated insulation voltage50 V DC
Rated surge voltage0.5 kV
Supported controller YOKOGAWA CS3000 CentumVP
Suitable I/O cardADV151
ADV161
ADV551
ADV561
Supported controller YOKOGAWA STARDOM
Suitable I/O cardNFDV151
NFDV161
NFDV551
NFDV561
Output data
Contact switching type1 N/O contact
Type of switch contactDouble contact
Contact materialAgNi, 5 µm hard gold-plated
Maximum switching voltage< 25 V AC
48 V DC
Limiting continuous current1 A
Min. switching current1 mA
Interrupting rating (ohmic load) max.24 W (24 V DC)
48 W (48 V DC)
25 VA (25 V AC)
Mechanical service lifeapprox. 2x 107cycles
Connection data
Field level
Connection methodScrew connection
Conductor cross section rigid0.2 m² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Controller level
Connection methodYokogawa KS-compatible
Number of connections2
Number of positions50
NoteUsable system cables: Phoenix Contact YUC50, Yokogawa AKB331
Tightening torque0.5 Nm
Signaling
Status displayLED (red)
Status display presentYes, if the fuse fails
Operating voltage displayGreen LED
Dimensions
Item dimensions
Width343.1 mm
Height111.9 mm
Depth65.15 mm
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP00
Ambient temperature (operation)-20 °C ... 65 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m
Standards and regulations
Standards/regulationsEN IEC 60664-1
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany
Notes
Notes on operationVoltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display.
Notes on operationDo not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch.
Notes on operationNo additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC).
Notes on operationAgainst adjacent modules in the support rail direction at least one functional insulation on the output-side is complied with. If the application has higher requirements on the insulation (basic insulation or reinforced insulation), then these must be realized through suitable measures (e. g. partition plates).
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2900162 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Number of poles (EF001391) 50
Rated voltage (EF000228) 24 V
Rated current (EF000227) 0.1 A
Depth (EF000049) 65.15 mm
Width (EF000008) 343.1 mm
Height (EF000040) 111.9 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
