View larger
Images are for illustrative purposes only. Please refer to data sheet for details

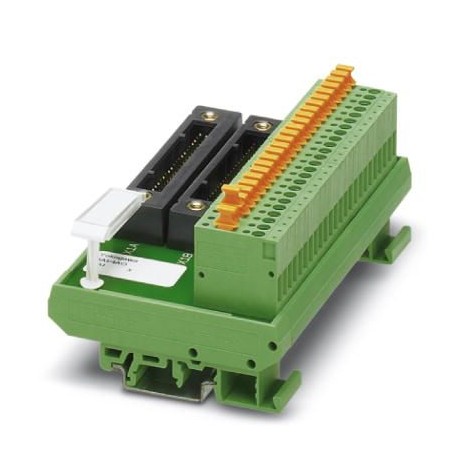

FLKM-2KS40/PMT/YCS 2321907 PHOENIX CONTACT Passive module
FLKM-2KS40/PMT/YCS
2321907
PHOENIX CONTACT
1 Pcs.
Passive module
VARIOFACE interconnection module for analog components, 8 channels, redundant connector. For Yokogawa CENTUM CS3000 AAI135, AAI835 cards.
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | < 60 V DC |
|---|---|
| < 50 V AC | |
| Max. perm. current (per branch) | 1 A |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Degree of protection | IP20 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of connections | 2 |
| Number of positions | 40 |
Supported controller
| Controller | YOKOGAWA CS3000 CentumVP |
|---|---|
| - suitable I/O card | AAI135 |
| AAI835 | |
| Controller | YOKOGAWA STARDOM |
| - suitable I/O card | NFAI135 |
| NFAI835 |
Standards and Regulations
| Designation | Air clearances and creepage distances |
|---|---|
| Standards/regulations | EN 50178 |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV (basic insulation) |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250300eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Number of poles (EF001391) | 24 |
| Rated voltage (EF000228) | 50 V |
| Rated current (EF000227) | 1 A |
| Depth (EF000049) | 57.1 mm |
| Width (EF000008) | 134.8 mm |
| Height (EF000040) | 77 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
