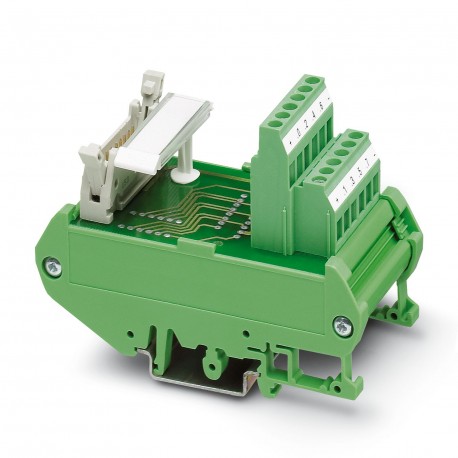

PHOENIX CONTACT FLKM 14/PLC FLKM 14/PLC 2284581 PHOENIX CONTACT Passive module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLKM 14/PLC 2284581 PHOENIX CONTACT Passive module

FLKM 14/PLC

2284581

PHOENIX CONTACT

1 Pcs.

Passive module VARIOFACE interconnection module, for 8 channels VARIOFACE interface module for 8 channels

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
Product familyVARIOFACE
Number of positions14
No. of channels8
Insulation characteristics: Air clearances and creepage distances
InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2
Electrical properties
Operating voltage (AC)≤ 30 V AC
Operating voltage (DC)≤ 60 V DC
Current (per branch)≤ 1 A
Current (Voltage supply)≤ 3 A
Air clearances and creepage distances
Rated insulation voltage63 V
Rated surge voltage0.6 kV (1.2/50 μs)
Supported controller ABB S800 I/O
Suitable I/O cardDI810
DI811
DI814
DI818
DI830
DI831
DI840
DO810
DO814
DO818
DO840
Supported controller SIEMENS S7-400
Suitable I/O card6ES7421-1BL01-0AA0
6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0
Supported controller GE-FANUC 90-30
Suitable I/O cardIC693 MDL241
IC693 MDL634
IC693 MDL645
IC693 MDL646
IC693 MDL732
IC693 MDL733
IC693 MDL740
IC693 MDL741
IC693 MDL742
Supported controller ALLEN-BRADLEY ControlLogix
Suitable I/O card1756-IB32
1756-OB32
1756-IN16
1756-IB16
1756-IC16
1756-OB16E
Supported controller ALLEN-BRADLEY PLC 5
Suitable I/O card1771 IBN
1771 OBN
Supported controller ALLEN-BRADLEY SLC 500
Suitable I/O card1746 OB16
1746 OV16
1746 OG16
1746 IA16
1746 ITB16
1746 IN16
1746 IV16
1746 ITV16
1746 IG16
1746 OB 32
1746 OV 32
1746 IB 32
1746 IV 32
1746 IB16
Supported controller HONEYWELL Experion PKS C200
Suitable I/O cardTC-IDD 321
TC-ODD 321
Supported controller MITSUBISHI MELSEC Q
Suitable I/O cardQX81
QY81P
Supported controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM
Suitable I/O cardDDI 353
DDI 853
DAI 353
DAI 453
DDO 353
Supported controller SIEMENS S7-300 / ET 200 M
Suitable I/O cardCPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7321-1BH02-0AA0
6ES7321-1BL00-0AA0
6ES7322-1BH01-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BH01-0AA0
6ES7323-1BL00-0AA0
6ES7321-1BH10-0AA0
6ES7322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP
Connection data
Connection 1 (control level)
Connection in acc. with standardIEC 60603-13
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions14
Insertion/withdrawal cycles> 50
Pitch2.54 mm
Connection 2 (field level)
Connection methodScrew connection
Stripping length7 mm
Screw threadM3
Number of positions12
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm
Pitch5.08 mm
Signaling
Status display presentNo
Dimensions
Item dimensions
Width45 mm
Height90 mm
Depth68 mm
Material specifications
Colorgreen (RAL 6021)
Housing insulation materialPolyamide 6.6 green
Environmental and real-life conditions
Ambient conditions
Degree of protection (Module)IP00
Degree of protection (Installation location)≥ IP54
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Altitude≤ 2000 m
Approvals
UKCA
CertificateUKCA-compliant
Standards and regulations
Air clearances and creepage distances
Standards/regulationsEN IEC 60664-1
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2284581 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 14
Rated voltage (EF000228) 30 V
Rated current (EF000227) 1 A
Depth (EF000049) 68 mm
Width (EF000008) 45 mm
Height (EF000040) 90 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
