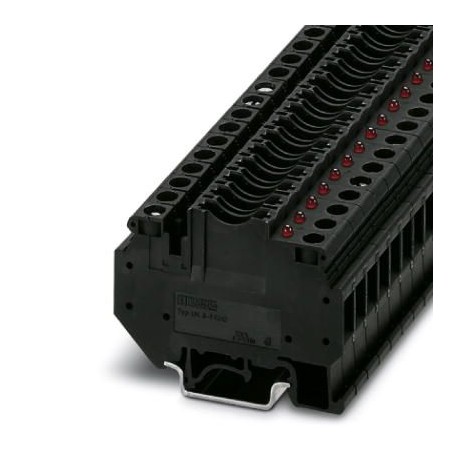

PHOENIX CONTACT UK 6-FSI/C-LED24 UK 6-FSI/C-LED24 3001938 PHOENIX CONTACT Fuse modular terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UK 6-FSI/C-LED24 3001938 PHOENIX CONTACT Fuse modular terminal block

UK 6-FSI/C-LED24

3001938

PHOENIX CONTACT

1 Pcs.

Fuse modular terminal block Terminal block for flat fuse, cross-section: 0.2-6 mm², AWG: 26-8, width: 8.2 mm, colour: Black, with light indication, light indicator voltage: 24 V DC, light indication current: 2 mA

Automation > Fuse terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3001938
Packing unit50 pc
Catalog pagePage 461 (C-1-2017)
GTIN4017918100971
Weight per Piece (excluding packing)21.120 g
Custom tariff number85369010
Country of originTR (Turkey)

General

Number of levels1
Number of connections2
Mounting typeNS 35/7,5
Colorblack
Number of positions1
Insulating materialPA
Flammability rating according to UL 94V0

Electrical data

FuseC
Fuse typeFlat
Degree of pollution3
Insulating material groupI
Connection in acc. with standardIEC 60947-7-3
Maximum current with single arrangement30 A (special arrangements on request)
Voltage LEDLED red
Current LED2 mA (LED red)

Dimensions

Width8.2 mm
Height NS 35/7,552 mm
Height NS 35/1559.5 mm
Height NS 3257 mm

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.10 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.6 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.8
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.2.5 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.2.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.4 mm²
Connection methodScrew connection
Stripping length10 mm
Internal cylindrical gageA5
Screw threadM4
Tightening torque, min1.5 Nm
Tightening torque max1.8 Nm

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-3
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3001938 Terminal blocks (EC000899)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Rated current In (EF008250) 30 A
Rated voltage (EF000228) 250 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of levels (EF002659) 1
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 8.15 mm
Height (EF000040) 64.2 mm
Depth (EF000049) 46.727908 mm
Closing plate required (EF002525) No
Colour (EF000007) Black
