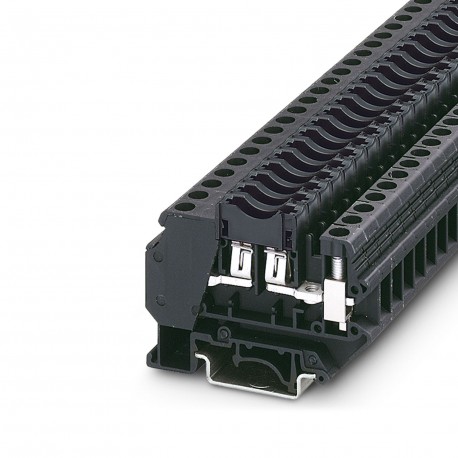

PHOENIX CONTACT UK 6-FSI/C UK 6-FSI/C 3118203 PHOENIX CONTACT Fuse modular terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UK 6-FSI/C 3118203 PHOENIX CONTACT Fuse modular terminal block

UK 6-FSI/C

3118203

PHOENIX CONTACT

1 Pcs.

Fuse modular terminal block Fuse rail terminal, fuse type: Flat, fuse type: C, nominal voltage: 250 V, nominal current: 30 A, number of poles: 1, connection type: Screw connection, 1st floor, Dimensioning section: 4 mm², section: 0.2 mm²- 10 mm², mounting class: NS 35/7.5, NS35/15, NS32, color: black Fuse modular terminal block, fuse type: Flat, fuse type: C, nom. voltage: 250 V, nominal current: 30 A, number of positions: 1, connection method: Screw connection, 1 level, Rated cross section: 4 mm2, cross section:  0.2 mm2- 10 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: black

Automation > Fuse terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
General
NoteThe current is determined by the fuse used, the voltage by the fuse or selected light indicator.
Product properties
Product typeFuse terminal block
Number of positions1
Number of connections2
Number of rows1
Potentials1
Data management status
Article revision17
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Fuse typeFlat
Rated surge voltage4 kV
Maximum power dissipation for nominal condition1.31 W
FuseC
Maximum current with single arrangement30 A (special arrangements on request)
Connection data
Number of connections per level2
Nominal cross section6 mm²
1 level
Screw threadM4
Tightening torque1.5 ... 1.6 Nm
Stripping length10 mm
Internal cylindrical gageA5
Connection in acc. with standardIEC 60947-7-3
Conductor cross section rigid0.2 mm² ... 10 mm²
Cross section AWG24 ... 8 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 6 mm²
Conductor cross section, flexible [AWG]24 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 4 mm²
2 conductors with same cross section, solid0.2 mm² ... 2.5 mm²
2 conductors with same cross section, flexible0.2 mm² ... 2.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 4 mm²
Nominal current30 A
Maximum load current30 A
Nominal voltage250 V
Nominal cross section4 mm²
Dimensions
Width8.2 mm
Height64 mm
Depth52.6 mm
Depth on NS 3258.8 mm
Depth on NS 35/7,553.8 mm
Depth on NS 35/1561.3 mm
Material specifications
Colorblack (RAL 9005)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
Mechanical data
Open side panelNo
Environmental and real-life conditions
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2018-05
SpectrumService life test category 1, class B, body mounted
Frequencyf1= 5 Hz to f2= 150 Hz
ASD level0.964 (m/s²)²/Hz
Acceleration0.58g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2018-05
Pulse shapeHalf-sine
Acceleration5g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-3
Mounting
Mounting typeNS 35/7,5
NS 35/15
NS 32

ETIM for 3118203 Terminal blocks (EC000899)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Rated current In (EF008250) 30 A
Rated voltage (EF000228) 250 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of levels (EF002659) 1
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 8.15 mm
Height (EF000040) 64.2 mm
Depth (EF000049) 46.727908 mm
Closing plate required (EF002525) No
Colour (EF000007) Black
