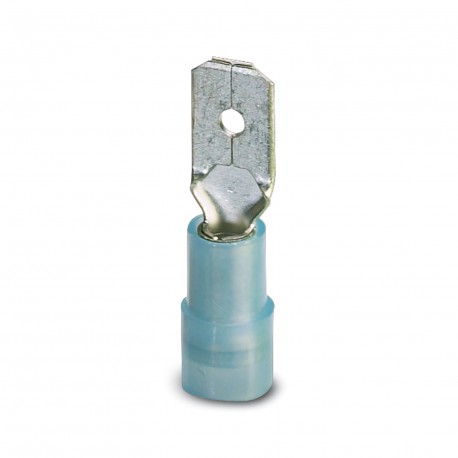

C-SCMI 2,5/6,3X0,8 3240059 PHOENIX CONTACT Connector
C-SCMI 2,5/6,3X0,8
3240059
PHOENIX CONTACT
50 Pcs.
Connector
Flat connector, blue, 1.5 - 2.5 mm², 6.3 x 0.8
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Connector |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Width | 6.3 mm |
| Sleeve length | 22.5 mm |
| Length of the insulating material sleeve | 11 mm |
| Maximum stripping length | 8 mm |
| Min. material thickness | 0.8 mm |
| Inner dimensions of the insulating collar | 4.5 mm |
Material specifications
| Color | blue (RAL 5015) |
| Material | Brass |
| Flammability rating according to UL 94 | V2 |
| Coating | tin-plated |
| Insulating material | PA |
| Components | halogen-free |
Mechanical properties
| Technical data | |
| Sleeve length | 22.5 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 105 °C |
| Feature Name | Feature Value |
|---|---|
| Nominal cross section (EF005124) | 1.5 mm² |
| Material (EF002169) | Other |
