View larger
Images are for illustrative purposes only. Please refer to data sheet for details

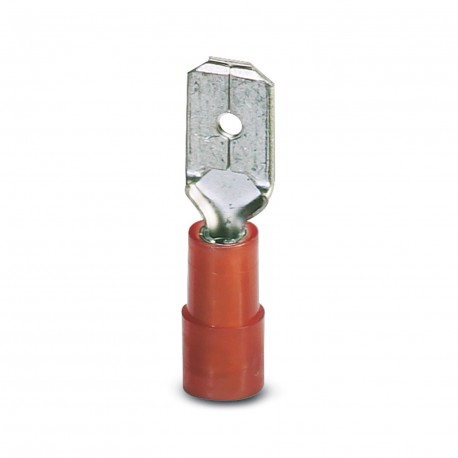

C-SCMI 1,5/6,3X0,8 3240058 PHOENIX CONTACT Connector
C-SCMI 1,5/6,3X0,8
3240058
PHOENIX CONTACT
100 Pcs.
Connector
Flat connector, red, 0.5 - 1.5 mm², 6.3 x 0.8
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240058 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 499 (C-3-2017) |
| GTIN | 4046356452762 |
| Weight per Piece (excluding packing) | 0.890 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
Dimensions
| Length (b) | 22 mm |
|---|---|
| Width (a) | 6.3 mm |
| Maximum stripping length | 7 mm |
| Length of insulation sleeve (c) | 10.5 mm |
| Inner dimension of the insulating collar (d) | 4.1 mm |
| Material thickness (g) | 0.8 mm |
General
| Color | red |
|---|---|
| Stripping length | 7 mm |
| Components | halogen-free |
| Flammability rating according to UL 94 | V2 |
| Material | Brass |
| Insulating material | PA |
| Coating | tin-plated |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060701eCl@ss 4.127060701eCl@ss 5.027400201eCl@ss 5.127400200eCl@ss 6.027400200eCl@ss 7.027400204eCl@ss 8.027400204eCl@ss 9.027400204
| Feature Name | Feature Value |
|---|---|
| Nominal cross section (EF005124) | 0.5 mm² |
| Material (EF002169) | Other |
