View larger
Images are for illustrative purposes only. Please refer to data sheet for details

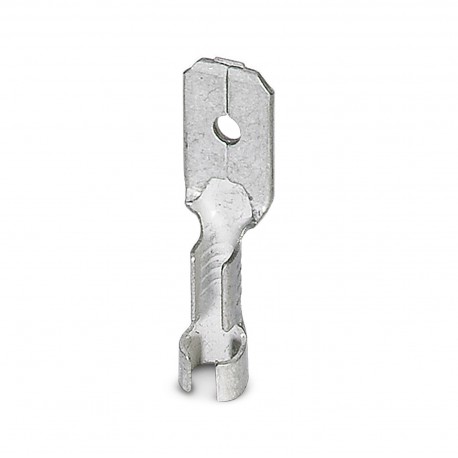

C-SCM 1,5/6,3X0,8 3240161 PHOENIX CONTACT Connector
C-SCM 1,5/6,3X0,8
3240161
PHOENIX CONTACT
100 Pcs.
Connector
Flat, uninsulated connector, 0.5 - 1.5 mm², 6.3 x 0.8
Flat connector, non-insulated, 0.5 - 1.5 mm2, 6.3 x 0.8
Automation > Crimp splices for copper conductor
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Connector |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Fuse | DIN 46248 |
Dimensions
| Dimensional drawing |  |
| Width | 6.3 mm |
| Sleeve length | 19 mm |
| Maximum stripping length | 7 mm |
| Min. material thickness | 0.8 mm |
Material specifications
| Color | silver-colored |
| Material | Brass |
| Coating | tin-plated |
| Insulating material | nicht zutreffend |
Mechanical properties
| Technical data | |
| Sleeve length | 19 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | 110 °C |
| Feature Name | Feature Value |
|---|---|
| Nominal cross section (EF005124) | 0.5 mm² |
| Sleeve form (EF007866) | Short |
| Suitable for solid conductors (EF007816) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Suitable for fine strand conductors (EF007804) | Yes |
| Suitable for high temperatures (to 650 °C) (EF007812) | No |
| Suitable for insulated varnish (EF007815) | No |
| Suitable for round conductors (EF007820) | No |
| Suitable for flat conductors (EF007805) | No |
| Material (EF002169) | Other |
| Insulation (EF000155) | Other |
| Number of branches (EF002511) | 1 |
| For pull protected connections (EF001343) | Yes |
| Oil stop/centre bar (EF001342) | No |
