View larger
Images are for illustrative purposes only. Please refer to data sheet for details

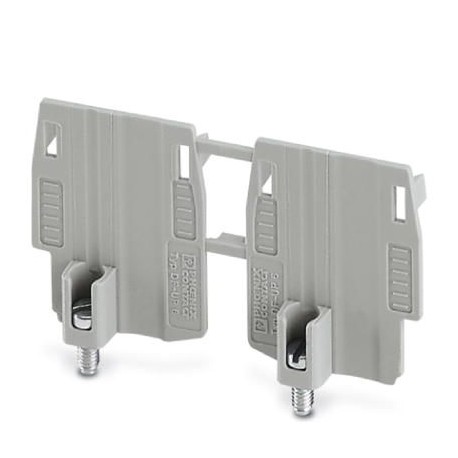

DF-UP 6 3060856 PHOENIX CONTACT Flange cover
DF-UP 6
3060856
PHOENIX CONTACT
50 Pcs.
Flange cover
Clamped flange caps, snap-onto the UP 6/..., connection type: Screw connection, length: 21 mm, width: 4.5 mm, height: 24.7 mm, colour: grey
Automation > Endplate and partition plate for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3060856 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 370 (C-1-2017) |
| GTIN | 4046356607766 |
| Weight per Piece (excluding packing) | 1.720 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M2,5 |
| Tightening torque, min | 0.4 Nm |
| Tightening torque max | 0.5 Nm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141199eCl@ss 4.127141199eCl@ss 5.027141145eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141133eCl@ss 8.027141133eCl@ss 9.027141133
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Grey |
| Thickness (EF000125) | 4.45 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
