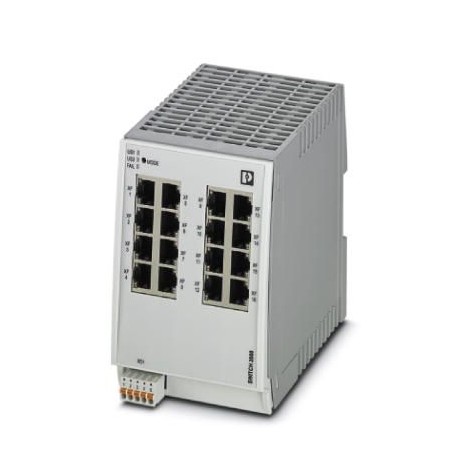

PHOENIX CONTACT FL SWITCH 2216 FL SWITCH 2216 2702904 PHOENIX CONTACT Industrial Ethernet Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL SWITCH 2216 2702904 PHOENIX CONTACT Industrial Ethernet Switch

FL SWITCH 2216

2702904

PHOENIX CONTACT

1 Pcs.

Industrial Ethernet Switch Managed Switch 2000, 16 RJ45 ports 10/100 MBit/s, PROFINET Conformance-Class B, Extended temperature range

Automation > Network switch
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2702904
Packing unit1 pc
GTIN4055626397214
Weight per Piece (excluding packing)445.000 g
Custom tariff number85176200
Country of originDE (Germany)

Dimensions

Width85 mm
Height130 mm
Depth115 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)10 % ... 95 % (non-condensing)
Air pressure (operation)68 kPa ... 108 kPa (3000 m above sea level)
Air pressure (storage/transport)68 kPa ... 108 kPa (3000 m above sea level)

Interfaces

Interface 1Ethernet (RJ45)
No. of ports16 (RJ45 ports)
Note on the connection methodAuto negotiation and autocrossing
Transmission physicsCopper
Transmission speed10/100 Mbps
Transmission length100 m (per segment)
Signal LEDsData receive, link status

Function

Basic functionsStore-and-forward switch, complies with IEEE 802.3
ManagementWeb-based management (HTTP/HTTPS)
SNMPv1/v2/v3
Command-line interface (Telnet, SSH)
Diagnostic functionsRMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
N:1-Portmirroring
ACD (Address Conflict Detection)
Filter functionsQuality of Service (8 priority classes)
Port-Priorisierung
VLAN (up to 32 VLANs)
IGMP Snooping (32 groups)
IGMP Query
Auto-Query-Port
Extended Multicast Filtering
MAC address table8k
RedundancyMRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support
IP parameterizationDHCP-Client
DHCP Option 82 (Relay Agent)
DHCP server (pool-based, port-based)
BootP
PROFINET device functionPROFINET device
PROFINET conformance classConformance-Class B
Time synchronizationSNTP (Simple Network Time Protocol)
Status and diagnostic indicatorsLEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link/Activity and Speed)
Signal contact control voltage24 V DC (typical)
Signal contact control current1 minute, maximum

Network expansion parameters

Cascading depthNetwork, linear, and star structure: any
Maximum conductor length (twisted pair)100 m

Supply voltage

Supply voltage24 V DC (redundant)
Residual ripple3.6 VPP(within the permitted voltage range)
Supply voltage range12 V DC ... 57 V DC
Typical current consumption315 mA (at US= 24 V DC)
Max. current consumption1.4 A (At US= 12 V DC and 70°C ambient temperature)
Current consumption315 mA

General

Mounting typeDIN rail
Type AXBook type
Net weight445 g
Housing materialPolycarbonate fiber reinforced
NoteSupport by phone or on-site (fee is charged)
MTTF365.63 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
218.22 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
31.7 Years (SN 29500 standard, temperature 55 °C, operating cycle 100 % (7 days a week, 24 hours a day))

Connection data

Connection methodPush-in spring connection
Conductor cross section solid min.0.25 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.25 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16
Stripping length9 mm

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2
Vibration (storage/transport)5g, 150 Hz, in acc. with IEC 60068-2-6
Free from substances that could impair the application of coatingYes
Vibration (operation)in acc. with IEC 60068-2-6: 5g, 150 Hz
UL, USAUL 60079-0, Ed.6 / UL 60079-7, Ed.5
UL, CanadaCSA C22.2 NO.60079-0, Ed.3 / CSA C22.2 NO.60079-7:16

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2702904 Data networking products (EC000734)
Feature Name Feature Value
Ethernet (EF003535) Yes
Number of other ports (EF007643) 16
Mounting method (EF000003) Other
Manageable (EF004912) Yes
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 130 mm
Width (EF000008) 85 mm
Depth (EF000049) 125.063404 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
