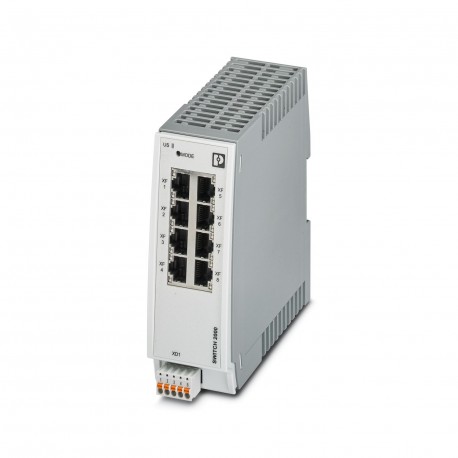

FL SWITCH 2008 2702324 PHOENIX CONTACT Industrial Ethernet Switch

FL SWITCH 2008

2702324

PHOENIX CONTACT

1 Pcs.

Industrial Ethernet Switch Managed Switch 2000, 8 RJ45 ports 10/100 MBit/s, PROFINET Conformance-Class A Managed Switch 2000, 8 RJ45 ports 10/100 MBit/s, PROFINET Conformance-Class A, Development process certified according to IEC 62443-4-1, Compatible with IEC 62443-4-2

Automation > Network switch
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2702324
Packing unit1 pc
Catalog pagePage 402 (C-6-2017)
GTIN4055626128917
Weight per Piece (excluding packing)323.000 g
Custom tariff number85176200
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width45 mm
Height130 mm
Depth115 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)0 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)10 % ... 95 % (non-condensing)
Air pressure (operation)86 kPa ... 108 kPa (1500 m above sea level)
Air pressure (storage/transport)86 kPa ... 108 kPa (1500 m above sea level)

Interfaces

Interface 1Ethernet (RJ45)
No. of ports8 (RJ45 ports)
Note on the connection methodAuto negotiation and autocrossing
Transmission physicsCopper
Transmission speed10/100 Mbps
Transmission length100 m (per segment)
Signal LEDsData receive, link status

Function

Basic functionsStore-and-forward switch, complies with IEEE 802.3
ManagementWeb-based management (HTTP/HTTPS)
SNMPv1/v2/v3
Command-line interface (Telnet, SSH)
Diagnostic functionsRMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
N:1-Portmirroring
ACD (Address Conflict Detection)
Filter functionsQuality of Service (8 priority classes)
Port-Priorisierung
VLAN (up to 8 VLANs)
IGMP Snooping (32 groups)
IGMP Query
Auto-Query-Port
Extended Multicast Filtering
RedundancyMRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
MAC address table8k
IP parameterizationDHCP-Client
DHCP server (port based)
BootP
PROFINET conformance classConformance-Class A
Time synchronizationSNTP (Simple Network Time Protocol)
Status and diagnostic indicatorsLEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed)

Network expansion parameters

Cascading depthNetwork, linear, and star structure: any
Maximum conductor length (twisted pair)100 m

Supply voltage

Supply voltage24 V DC (single)
Residual ripple3.6 VPP(within the permitted voltage range)
Supply voltage range18 V DC ... 32 V DC
Typical current consumption180 mA (at US= 24 V DC)
Max. current consumption0.35 A (At US= 18 V DC and 60°C ambient temperature)
Current consumption180 mA

General

Mounting typeDIN rail
Type AXBook type
Net weight323 g
Housing materialPolycarbonate fiber reinforced
NoteSupport by phone or on-site (fee is charged)
MTTF507.8 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
246.55 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
56.66 Years (SN 29500 standard, temperature 55 °C, operating cycle 100 % (7 days a week, 24 hours a day))

Connection data

Connection methodPush-in spring connection
Conductor cross section solid min.0.25 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.25 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16
Stripping length9 mm

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2
Vibration (storage/transport)2g, criterion 1 according to IEC 60068-2-6
Free from substances that could impair the application of coatingYes
Vibration (operation)2g, according to IEC 60068-2-6
UL, USAUL 61010-1, Ed.3 / UL 61010-2-201, Ed.1
UL, CanadaCSA C22.2 NO.61010-2-201:14, Ed.1 / CSA C22.2 NO.61010-1-12, Ed.3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2702324 Data networking products (EC000734)
Feature Name Feature Value
Ethernet (EF003535) Yes
Number of other ports (EF007643) 8
Mounting method (EF000003) Other
Manageable (EF004912) Yes
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 130.592254 mm
Width (EF000008) 45 mm
Depth (EF000049) 125.1 mm
