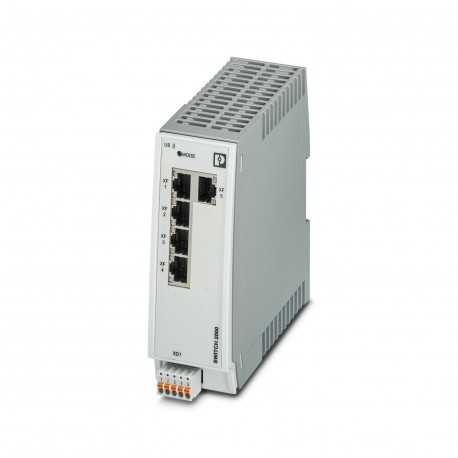

FL SWITCH 2005 2702323 PHOENIX CONTACT Industrial Ethernet Switch

FL SWITCH 2005

2702323

PHOENIX CONTACT

1 Pcs.

Industrial Ethernet Switch Managed Switch 2000, 5 RJ45 ports 10/100 MBit/s, PROFINET Conformance-Class A Managed Switch 2000, 5 RJ45 ports 10/100 Mbps, PROFINET Conformance-Class A, Development process certified in accordance with IEC 62443-4-1, Compatible with IEC 62443-4-2

Automation > Network switch
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Dimensions
Dimensional drawingcccearsezi.jpg
Width45 mm
Height130 mm
Depth119 mm
Notes
GeneralSupport by phone or on-site (fee is charged)
Note on application
Note on applicationOnly for industrial use
Material specifications
Housing materialPolycarbonate fiber reinforced
Mounting
Mounting typeDIN rail mounting
Interfaces
Ethernet (RJ45)
Connection methodRJ45
Note on the connection methodAuto negotiation and autocrossing
Transmission speed10/100 Mbps
Transmission physicsCopper
Transmission length100 m (per segment)
Signal LEDsData receive, link status
No. of channels5 (RJ45 ports)
Product properties
Product typeSwitch
Product familyManaged Switch 2000
TypeBook type
MTTF507.8 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
246.55 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
56.66 Years (SN 29500 standard, temperature 55°C, operating cycle 100%)
Special propertiesDevelopment process certified in accordance with IEC 62443-4-1
Compatible with IEC 62443-4-2
Signal delay≥ 6.5 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size)
Data management status
Article revision08
Insulation characteristics
Protection classIII (VDE 0106)
Degree of pollution2
Switch functions
Diagnostic functionsRMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
N:1-Portmirroring
ACD (Address Conflict Detection)
SysLog
CRC-Surveillance
Basic functionsStore-and-forward switch, complies with IEEE 802.3
PROFINET conformance classConformance-Class A
Filter functionsQuality of Service (8 priority classes)
Class of Service
DiffServ/DSCP
Port-Priorisierung
VLAN (up to 8 VLANs)
IGMP Snooping/Querier (v1/v2)
Auto-Query-Port
Extended Multicast Filtering
IP parameterizationDHCP client
DHCP server (port based)
BootP
MAC address table8k
ManagementWeb-based management (HTTP/HTTPS)
Role-based user management (LDAP)
SNMPv1/v2/v3
Command Line Interface (Telnet, SSH)
RedundancyMRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
Status and diagnostic indicatorsLEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed)
Additional functionsTransmission of MMS and GOOSE (IEC 61850-8-1)
Transmission of Modbus/TCP
Time synchronizationSNTP (Simple Network Time Protocol)
Security functions
Basic functionsStore-and-forward switch, complies with IEEE 802.3
Electrical properties
Current consumption165 mA
Local diagnosticsUS Supply voltage Green LED
LNK/ACT Link status Green LED
SPD Data transmission speed Green LED
Maximum power dissipation for nominal condition3.96 W (At US= 18 V DC and 60°C ambient temperature)
Test section24 V supply / functional ground 500 V DC 1 min.
Ethernet interface/all other potentials 2.25 kV DC 1 min.
Transmission mediumCopper
Supply
Supply voltage (DC)24 V DC (single)
Supply voltage range18 V DC ... 32 V DC
Power supply connectionvia COMBICON, max. conductor cross section 1.5 mm²
Residual ripple3.6 VPP(within the permitted voltage range)
Max. current consumption0.3 A (At US= 18 V DC and 60°C ambient temperature)
Typical current consumption165 mA (at US= 24 V DC and 25 °C ambient temperature)
Current consumption165 mA
Connection data
Connection methodPush-in spring connection
Note on the connection methodUse only copper connecting cables providing the permitted temperature range (-40 °C ... 75 °C).
Conductor cross section, rigid0.25 mm² ... 1.5 mm²
Conductor cross section, flexible0.25 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 16
Stripping length9 mm
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)0 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)10 % ... 95 % (non-condensing)
Shock (operation)30g (EN 60068-2-27)
Vibration (operation)2g, according to IEC 60068-2-6
Air pressure (operation)86 kPa ... 108 kPa (1500 m above sea level)
Air pressure (storage/transport)86 kPa ... 108 kPa (1500 m above sea level)
Standards and regulations
Free from substances that could impair the application of coatingYes
Approvals
UL, USA/Canada
IdentificationcULus
NoteUL 61010-1, Ed. 3 / UL 61010-2-201, Ed. 1, CSA C22.2 NO.61010-2-201:14. Ed. 1 / CSA C22.2 NO.61010-1-12. Ed. 3
EMC data
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Conformance with EMC directivesEN 61000-6-2 EN 61000-4-2 (ESD) Criterion B
EN 61000-6-2 EN 61000-4-3 (electromagnetic fields) Criterion A
EN 61000-6-2 EN 61000-4-4 (EFT burst) Criterion A
EN 61000-6-2 EN 61000-4-5 (surge) Criterion B
EN 61000-6-2 EN 61000-4-6 (line noise immunity) Criterion A
EN 61000-6-2 EN 61000-6-4 (interference) Class A
EN 61000-6-2 EN 61000-6-4 (conducted interference) Class A
Noise immunityEN 61000-6-2
Noise emissionEN 61000-6-4
System properties
Functionality
Basic functionsStore-and-forward switch, complies with IEEE 802.3
Signaling
Status displayLEDs: US (power supply), 2 LEDs per Ethernet port (Link/Activity and Speed)

ETIM for 2702323 Data networking products (EC000734)
Feature Name Feature Value
Ethernet (EF003535) Yes
Number of other ports (EF007643) 5
Mounting method (EF000003) Other
Manageable (EF004912) Yes
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 130.592254 mm
Width (EF000008) 45 mm
Depth (EF000049) 125.1 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
