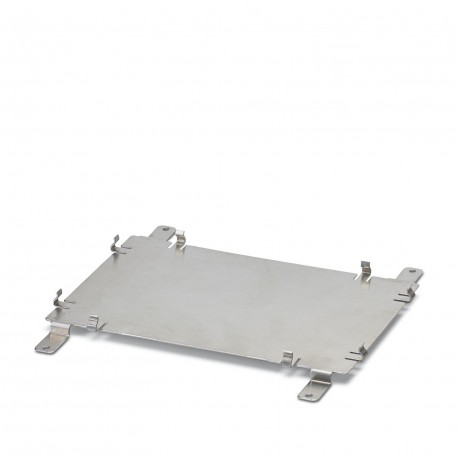

DCS D-FIX 7,0 2203830 PHOENIX CONTACT Mounting set
DCS D-FIX 7,0
2203830
PHOENIX CONTACT
1 Pcs.
Mounting set
Set of fixings consisting of sheet metal and screws, for the assembly of the screen
Mounting set including plate and screws, for display mounting
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Mounting material |
| Housing type | Display carrier |
| Housing series | DCS |
| Product family | DCS 7.. |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 00 |
Dimensions
| Width | 169.9 mm |
| Depth | 12.5 mm |
| Length | 145.2 mm |
Material specifications
| Housing material | Aluminum |
| Surface characteristics | untreated |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Aluminium |
| Surface finishing (EF006569) | Other |
