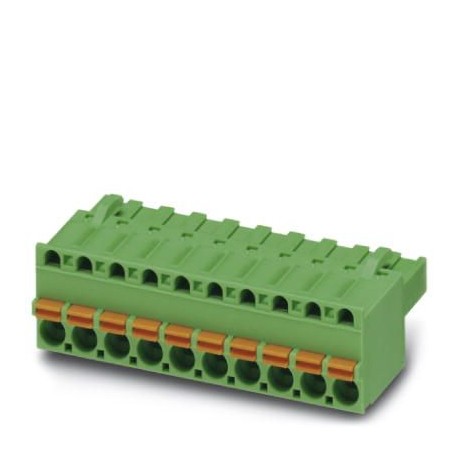

PHOENIX CONTACT FKCT 2,5/18-ST FKCT 2,5/18-ST 1909375 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º pol.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FKCT 2,5/18-ST 1909375 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º pol..

FKCT 2,5/18-ST

1909375

PHOENIX CONTACT

2000 Pcs.

Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 18,Pitch: 5 mm,connection technology: Connection by spring loaded push-in,Color: green,contact Surface: Tin Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 18, number of rows: 1, number of poles: 18, number of connections: 18, article family: FKCT 2.5/.. -ST, pitch: 5mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Data commercial

Key orderOne million nine hundred nine thousand three hundred seventy five
Packing unit50 pcs
Key sellingAAAFAB -
Catalog pagePage 139 (CC_2005)
EANFour trillion seventeen billion nine hundred eighteen million one hundred eighty eight thousand two hundred thirty eight
Unit weight (excluding packaging)28,595 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred ninety
Country of origin(Germany)

Dimensions

Length [ l ]25,6 mm
Width [ w ]90,1 mm
Height [ h ]15 mm
Step5 mm
Average85 mm

Overview

Family of articlesFKCT 2,5/..-ST
Number of polesEighteen
Type of connectionConnection by spring loaded push-in
Group insulating materialI
Transient voltage design (III/3)4 kV
Transient voltage design (III/2)4 kV
Transient voltage design (II/2)4 kV
Tension and sizing (III/3)320 V
Tension and sizing (III/2)320 V
Tension and sizing (II/2)630 V
Connection according to standardEN-VDE
Nominal current IN12 To
Nominal cross section2.5 mm2
Maximum load current12 To
IsolationPA
Class of flammability according to UL 94V0
Gauge maleA2
Length desaislar10 mm

Data connection

Core cross-section rigid min.0,2 mm2
Section of conductor rigid max.2.5 mm2
Section of flexible conductor, min.0,2 mm2
Section of flexible conductor max.2.5 mm2
Section of flexible conductor with toe cap, without plastic sleeve min.0.25 mm2
Section of flexible conductor with toe cap, without plastic sleeve max.2.5 mm2
Section of flexible conductor with toe, with plastic sleeve min.0.25 mm2
Section of flexible conductor with toe, with plastic sleeve max.2.5 mm2
Section of conductor AWG min.Twenty four
Section of conductor AWG max.Twelve
2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min.0.5 mm2
2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max.1.5 mm2
AWG according to UL/CUL min.Twenty six
AWG according to UL/CUL max.Twelve

Standards and specifications

Connection according to standardEN-VDE
CSA
Class of flammability according to UL 94V0

Environmental Product Compliance

China RoHSSpace of time for the intended use: unlimited = FEUP-e
No dangerous substances above the thresholds

Ratings


ETIM for 1909375 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 18
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
