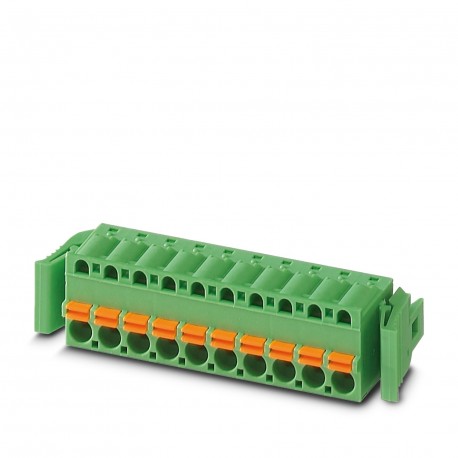

PHOENIX CONTACT FKC 2,5/ 5-ST-5,08-RF AU BDMC FKC 2,5/ 5-ST-5,08-RF AU BDMC 1109827 PHOENIX CONTACT Connector for printed circuit board, number of poles: .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FKC 2,5/ 5-ST-5,08-RF AU BDMC 1109827 PHOENIX CONTACT Connector for printed circuit board, number of poles: ..

FKC 2,5/ 5-ST-5,08-RF AU BDMC

1109827

PHOENIX CONTACT

1000 Pcs.

Connector for printed circuit board, number of poles: 5, pitch: 5,08 mm, color: green Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Female, number of rows: 1, number of poles: 5, article family: FKC 2.5/.. -ST-RF, pitch: 5.08 mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: Snap locking, fixing type: Socket flange, packaging type: boxed Printed circuit board connector, nominal section: 2.5 mm2, color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Au, contact connection type: Female, number of rows: 1, number of poles: 5, family of articles: FKC 2.5/.. -ST-RF, pitch: 5.08 mm, connection type: Push-in spring connection, conductor connection direction/printed circuit board: 0°, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: Snap locking, fixing type: Locking trigger, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypePrinted Circuit Board Connector
Product FamilyFKC 2.5/.. -ST-RF
Product LineCOMBICON Connectors M
Number of poles5
Step5.08 mm
Number of rows1
Data Maintenance Status
Article Review01
Electrical Properties
Nominal Current IN12 A
Nominal voltage UN320 V
Sizing voltage (III/3)320 V
Dimensioning transient voltage (III/3)4 kV
Dimensioning voltage (III/2)320 V
Dimensioning Transient Voltage (III/2)4 kV
Nominal voltage (II/2)630 V
Dimensioning transient voltage (II/2)4 kV
Connection data
Connection technology
Connector SystemCOMBICON MSTB 2.5
Nominal Section2.5 mm²
Contact Connection TypeFemale
Blockade
Locking systemLace lock
Clamping flangeLocking trigger
Connecting Conductors
Connection typePush-in spring connection
Connection Direction Driver/PCB0 °
Rigid conductor section0.2 mm² ... 2.5 mm²
Flexible conductor section0.2 mm² ... 2.5 mm²
AWG Conductor Section24 ... 12
Flexible conductor section with toe cap, without plastic sleeve0.25 mm² ... 2.5 mm²
Flexible conductor section with toe cap, with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with the same cross-section, flexible with TWIN toe cap with plastic sleeve0.5 mm² ... 1 mm²
Male gauge a x b / Diameter2.8 mm x 2.0 mm / 2.0 mm
Peel Length10 mm
Facts about toe caps without an insulated collar
Recommended crimp pliers1212034 CRIMPFOX 6
toe caps without insulating collar, according to DIN 46228-1Cross-section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross-section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross-section: 1 mm²; Length: 8 mm ... 10 mm
Cross-section: 1.5 mm²; Length: 8 mm ... 10 mm
Cross-section: 2.5 mm²; Length: 10 mm
Facts about Insulated Collar Toe Caps
Recommended crimp pliers1212034 CRIMPFOX 6
toe caps with insulated collar, according to DIN 46228-4Cross-section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross-section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross-section: 1 mm²; Length: 8 mm ... 10 mm
Cross-section: 1.5 mm²; Length: 8 mm ... 10 mm
Cross-section: 2.5 mm²; Length: 10 mm
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsPartially gilded
Metal surface of the terminal point (top layer)Tin (4 - 8 μm Sn)
Metal surface contact area (top layer)Gold (0.8 - 1.4 μm Au)
Metal Surface Contact Area (Middle Layer)Nickel (2 - 3 μm Ni)
Material data - housing
Color (Housing)Green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Material data: drive element
Color (Drive Element)Orange (2003)
Insulating materialPBT
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Dimensions
Dimension Schemeedyvovzxrs.jpg
Step5.08 mm
Width [w]38.82 mm
Height [h]15 mm
Length [l]25.73 mm
Notes
Observation regarding the operationAccording to DIN EN 61984, COMBICON connectors are connectors without switching power (COC). In the event of use as prescribed, they must not be plugged in or unplugged under voltage or under load.
Environmental and life-life conditions
Environmental conditions
Ambient Temperature (Service)-40 °C ... 100 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Electrical Testing
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 600
Sizing Insulation Voltage (III/3)320 V
Nominal transient voltage (III/3)4 kV
minimum value of air insulation distance - non-homogeneous field (III/3)3 mm
Minimum creepage line value (III/3)4 mm
Sizing Insulation Voltage (III/2)320 V
Nominal transient voltage (III/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)3 mm
Minimum creepage line value (III/2)3 mm
Sizing Insulation Voltage (II/2)630 V
Nominal transient voltage (II/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)3 mm
Minimum creepage line value (II/2)3.2 mm
Packaging Information
Type of packagingBoxed Packaging

ETIM for 1109827 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Gold
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
