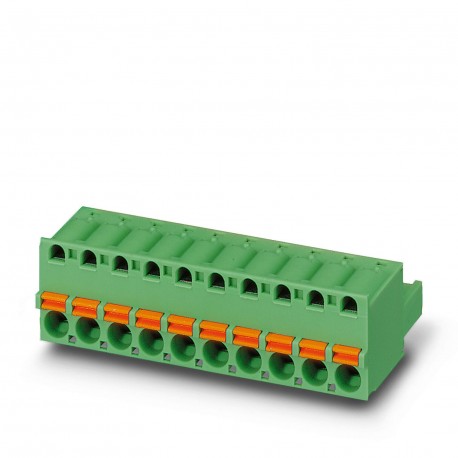

PHOENIX CONTACT FKC 2,5/ 3-ST BD:612-614 FKC 2,5/ 3-ST BD:612-614 1726884 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FKC 2,5/ 3-ST BD:612-614 1726884 PHOENIX CONTACT Printed-circuit board connector

FKC 2,5/ 3-ST BD:612-614

1726884

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Female connection, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: FKC 2.5/.. -ST, pitch: 5 mm, connection type: Push-in spring connection, conductor connection direction/printed circuit board: 0 °, Clamping hook: - Clamping hook, plug-in system: CLASSIC COMBICON, Locking: without, fixing type: without, packaging type: packed in box PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: FKC 2,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB connector
Product familyFKC 2,5/..-ST
Product lineCOMBICON Connectors M
Number of positions3
Pitch5 mm
Number of connections3
Number of rows1
Number of potentials3
Mounting flangewithout
Data management status
Article revision02
Electrical properties
Nominal current IN12 A
Nominal voltage UN320 V
Contact resistance1 mΩ
Rated voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
Connection data
Connection technology
TypeStandard
Connector systemCOMBICON MSTB 2,5
Nominal cross section2.5 mm²
Contact connection typeSocket
Interlock
Locking typewithout
Mounting flangewithout
Conductor connection
Connection methodPush-in spring connection
Conductor/PCB connection direction0 °
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1.5 mm²
Cylindrical gauge a x b / diameter2.8 mm x 2.0 mm / 2.0 mm
Stripping length10 mm
Specifications for ferrules without insulating collar
recommended crimping tool1212034 CRIMPFOX 6
ferrules without insulating collar, according to DIN 46228‑1Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 8 mm ... 10 mm
Cross section: 2.5 mm²; Length: 10 mm
Specifications for ferrules with insulating collar
recommended crimping tool1212034 CRIMPFOX 6
ferrules with insulating collar, according to DIN 46228‑4Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 8 mm ... 10 mm
Cross section: 2.5 mm²; Length: 10 mm
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Material data – actuating element
Color (Actuating element)orange (2003)
Insulating materialPBT
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Dimensions
Dimensional drawingedyvovzxrs.jpg
Pitch5 mm
Width [w]14.9 mm
Height [h]15 mm
Length [l]25.73 mm
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Mechanical tests
Conductor connection
SpecificationIEC 60999-1:1999-11
ResultTest passed
Test for conductor damage and slackening
SpecificationIEC 60999-1:1999-11
ResultTest passed
Repeated connection and disconnection
SpecificationIEC 60999-1:1999-11
ResultTest passed
Pull-out test
SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
2.5 mm² / solid / > 50 N
2.5 mm² / flexible / > 50 N
Insertion and withdrawal forces
SpecificationIEC 60512-13-2:2006-02
ResultTest passed
No. of cycles25
Insertion strength per pos. approx.8 N
Withdraw strength per pos. approx.6 N
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level4.8 kV
Contact resistance R11 mΩ
Contact resistance R21.2 mΩ
Insertion/withdrawal cycles25
Insulation resistance, neighboring positions> 5 MΩ
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage2.21 kV
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions18
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
minimum clearance value - non-homogenous field (III/3)3 mm
minimum creepage distance (III/3)3.2 mm
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
minimum clearance value - non-homogenous field (III/2)3 mm
minimum creepage distance (III/2)3 mm
Rated insulation voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
minimum clearance value - non-homogenous field (II/2)3 mm
minimum creepage distance (II/2)3.2 mm
Packaging specifications
Type of packagingpacked in cardboard
