View larger
Images are for illustrative purposes only. Please refer to data sheet for details

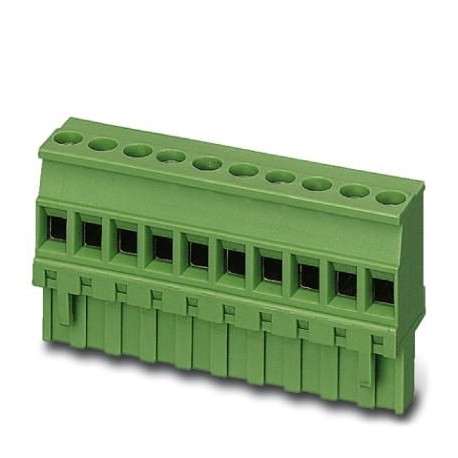

MVSTBR 2,5/ 5-ST-5,08 PA1,5 1711827 PHOENIX CONTACT Printed-circuit board connector
MVSTBR 2,5/ 5-ST-5,08 PA1,5
1711827
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Connector for printed circuit board, nominal section: 2.5 mm², colour: green, rated current: 12 A, dimensioning voltage (III/2): 320 V, surface contacts: Tin, contact type: Connection female, Number of potentials: 5, Number of rows: 1, Number of poles per row: 5, number of connections: 5, article family: MVSTBR 2.5/.. -ST, pitch: 5.08 mm, connection type: Screw connection with traction capsule, connection direction conductor/printed circuit board: 90°, Stecksystem: CLASSIC COMBICON, Lock: without, type of packaging: boxed packaging
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | MVSTBR 2,5/..-ST |
|---|---|
| Number of positions | 5 |
| Connection method | Screw connection with tension sleeve |
| Insulating material group | I |
| Rated voltage (III/2) | 320 V |
| Nominal current IN | 12 A |
| Nominal cross section | 2.5 mm² |
| Screw thread | M3 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
