View larger
Images are for illustrative purposes only. Please refer to data sheet for details

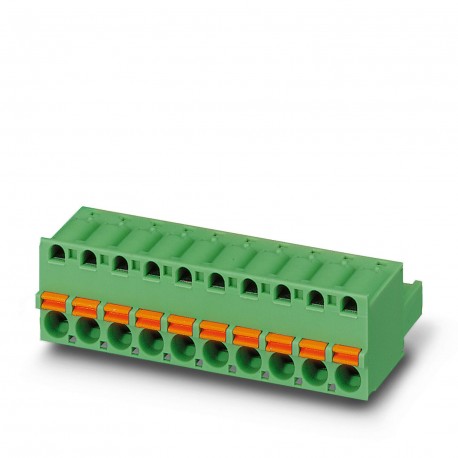

FKC 2,5/16-ST-5,08 AU 1704584 PHOENIX CONTACT Plug-in part, rated current: 12 A, dimensioning voltage (III/2..
FKC 2,5/16-ST-5,08 AU
1704584
PHOENIX CONTACT
50 Pcs.
Plug-in part, rated current: 12 A, dimensioning voltage (III/2): 320 V, number of poles: 16, pitch: 5.08 mm, connection type: Push-in spring connection, color: green, contact surface: Gold
Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Female, number of potentials: 16, number of rows: 1, number of poles: 16, number of connections: 16, family of articles: FKC 2.5/.. -ST, pitch: 5.08 mm, connection type: Push-in spring connection, conductor connection/printed circuit board connection direction: 0 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed
PCB connector, nominal cross-section: 2.5 mm2, colour: green, rated current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Au, contact connection type: Female, number of potentials: 16, number of rows: 1, number of poles: 16, number of connections: 16, product series: FKC 2.5/.. -ST, pitch: 5.08 mm, connection type: Push-in spring connection, conductor/board connection direction: 0 °, locking hook: - Locking hook, plug system: COMBICON MSTB 2.5, locking: none, fixing type: none, packaging type: packed in carton
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Plug component, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 16, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Gold
eCl@ss
| eCl@ss 4.0 | 272607xx |
|---|---|
| eCl@ss 4.1 | 27260701 |
| eCl@ss 5.0 | 27260701 |
| eCl@ss 5.1 | 27141190 |
| eCl@ss 6.0 | 27260704 |
| eCl@ss 7.0 | 27440402 |
| eCl@ss 8.0 | 27440309 |
| eCl@ss 9.0 | 27440309 |
UNSPSC
| UNSPSC 6.01 | 30211810 |
|---|---|
| UNSPSC 7.0901 | 39121409 |
| UNSPSC 11 | 39121409 |
| UNSPSC 12.01 | 39121409 |
| UNSPSC 13.2 | 39121409 |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 16 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Spring clamp connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Gold |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
