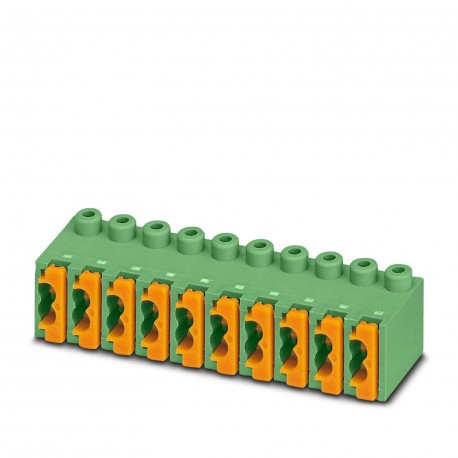

FK-MPT 0,5/ 9-ST-3,5 BD:1-9 1710654 PHOENIX CONTACT Printed-circuit board connector

FK-MPT 0,5/ 9-ST-3,5 BD:1-9

1710654

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 0.5 mm², color: green, nominal current: 4 A, nominal voltage (III/2): 250 V, contact surface: Tin, contact type: Female, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 18, article family: FK-MPT 0.5/.. -ST, pitch: 3.5mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, pin arrangement: Linear pin arrangement, plug-in system: COMBICON PST 1.0, lock: without, fixing type: without, packaging type: boxed PCB connector, nominal cross section: 0.5 mm2, color: green, nominal current: 4 A, rated voltage (III/2): 250 V, contact surface: Sn, contact connection type: Socket, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 18, product range: FK-MPT 0,5/..-ST, pitch: 3.5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, pin layout: Linear pinning, plug-in system: COMBICON PST 1,0, locking: without, mounting: without, type of packaging: packed in cardboard

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB connector
Product familyFK-MPT 0,5/..-ST
Product lineCOMBICON Connectors XS
Number of positions9
Pitch3.5 mm
Number of connections18
Number of rows1
Number of potentials9
Mounting flangewithout
Pin layoutLinear pinning
Data management status
Article revision02
Electrical properties
Nominal current IN4 A
Nominal voltage UN250 V
Rated voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
Rated voltage (III/2)250 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)250 V
Rated surge voltage (II/2)2.5 kV
Connection data
Interlock
Locking typewithout
Mounting flangewithout
Conductor connection
Connection methodPush-in spring connection
Conductor/PCB connection direction0 °
Conductor cross section rigid0.12 mm² ... 0.5 mm²
Conductor cross section AWG26 ... 20
Stripping length6.5 mm
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer)Nickel (2 - 3 µm Ni)
Metal surface contact area (top layer)Tin (5 - 7 µm Sn)
Metal surface contact area (middle layer)Nickel (2 - 3 µm Ni)
Material data - housing
Color (Housing)green (6021)
Insulating materialPBT
Insulating material groupIIIa
CTI according to IEC 60112225
Flammability rating according to UL 94V0
Material data – actuating element
Color (Actuating element)orange (2003)
Dimensions
Dimensional drawingedyvovzxrs.jpg
Pitch3.5 mm
Width [w]32 mm
Height [h]8.5 mm
Length [l]9.5 mm
Mounting
Pin layoutLinear pinning
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Electrical tests
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupIIIa
Comparative tracking index (IEC 60112)CTI 225
Rated insulation voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)2.5 mm
Rated insulation voltage (III/2)250 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)2.5 mm
Rated insulation voltage (II/2)250 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)2.5 mm
Packaging specifications
Type of packagingpacked in cardboard

ETIM for 1710654 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 18
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 250 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section solid-core (EF007337) 0.12 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Other
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
