> PHOENIX CONTACT > PCB Connectors (PCC) > 1724161

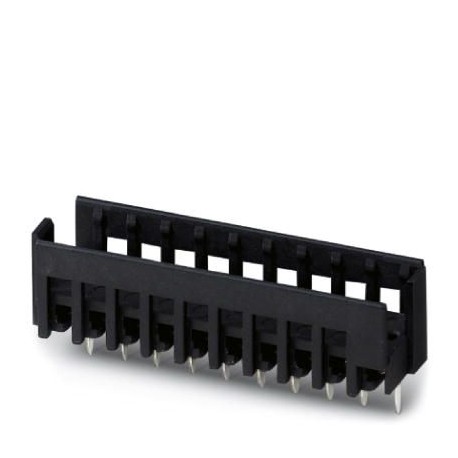

PHOENIX CONTACT FK-MPT 0,5/ 9-ICVA-3,5 GN FK-MPT 0,5/ 9-ICVA-3,5 GN 1724161 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FK-MPT 0,5/ 9-ICVA-3,5 GN 1724161 PHOENIX CONTACT Printed-circuit board connector

FK-MPT 0,5/ 9-ICVA-3,5 GN

1724161

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Printed-circuit board connector

Printed circuit board base housing, nominal section: 0.5 mm², color: green, nominal current: 3 A, dimensioning voltage (III/2): 250 V, contact surface: Tin, contact type: Female connection, Number of potentials: 9, Number of rows: 1, Number of poles per row: 9, number of connections: 9, family of articles: FK-MPT 0.5/.. -ICVA, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 3.3 mm, Stecksystem: COMBICON COMPACT FK-MPT - IC, Lock: without, packaging type: boxed
