View larger
Images are for illustrative purposes only. Please refer to data sheet for details

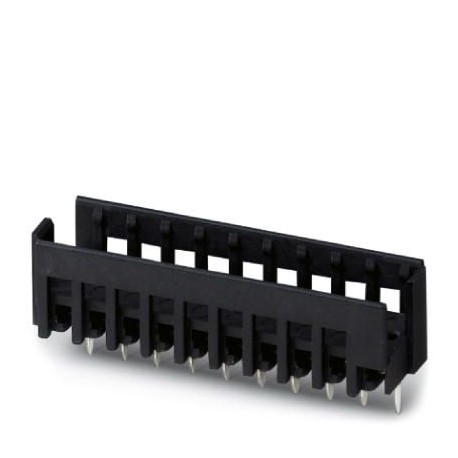

FK-MPT 0,5/ 7-ICVA-3,5 GN 1724158 PHOENIX CONTACT Feed-through header
FK-MPT 0,5/ 7-ICVA-3,5 GN
1724158
PHOENIX CONTACT
50 Pcs.
Feed-through header
Printed circuit board base housing, nominal section: 0.5 mm², color: green, nominal current: 3 A, dimensioning voltage (III/2): 250 V, contact surface: Tin, contact type: Female connection, Number of potentials: 7, Number of rows: 1, Number of poles per row: 7, number of connections: 7, family of articles: FK-MPT 0.5/.. -ICVA, pitch: 3.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 3.3 mm, Stecksystem: COMBICON COMPACT FK-MPT - IC, Lock: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1724158 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356123952 |
| Weight per Piece (excluding packing) | 1.290 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 9.1 mm |
|---|---|
| Width | 27 mm |
| Pitch | 3.5 mm |
| Dimension a | 21 mm |
| Width [ w ] | 27 mm |
| Height [ h ] | 12.1 mm |
| Height | 8.8 mm |
| Length of the solder pin | 3.3 mm |
| Pin dimensions | 0.3 x 0.9 mm |
| Length | 9.1 mm |
General
| Range of articles | FK-MPT 0,5/..-ICVA |
|---|---|
| Rated voltage (III/3) | 160 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 3 A |
| Color | green |
| Number of positions | 7 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
