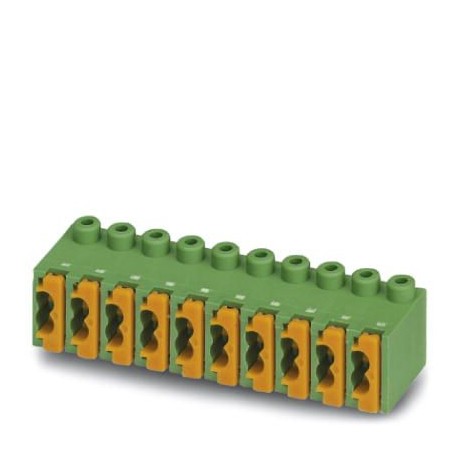

PHOENIX CONTACT FK-MPT 0,5/ 5-ST-3,5 BD:ABTTL FK-MPT 0,5/ 5-ST-3,5 BD:ABTTL 1700718 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FK-MPT 0,5/ 5-ST-3,5 BD:ABTTL 1700718 PHOENIX CONTACT PCB terminal block

FK-MPT 0,5/ 5-ST-3,5 BD:ABTTL

1700718

PHOENIX CONTACT

50 Pcs.

PCB terminal block Connector for printed circuit board, nominal section: 0.5 mm², color: green, nominal current: 4 A, nominal voltage (III/2): 250 V, contact surface: Tin, contact type: Female, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 10, article family: FK-MPT 0.5/.. -ST, pitch: 3.5mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, pin arrangement: Linear pin arrangement, plug-in system: COMBICON PST 1.0, lock: without, fixing type: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1700718
Packing unit1
GTIN4046356499200
Custom tariff number85366990

Dimensions

Length [ l ]9.5 mm
Width [ w ]18 mm
Height [ h ]8.5 mm
Pitch3.5 mm
Dimension a14 mm

General

Range of articlesFK-MPT 0,5/..-ST
Number of positions5
Connection methodPush-in spring connection
Rated voltage (III/3)160 V
Connection in acc. with standardEN-VDE
Nominal current IN4 A
Nominal cross section0.5 mm²

Connection data

Conductor cross section solid min.0.12 mm²
Conductor cross section solid max.0.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.20
Minimum AWG according to UL/CUL28
Maximum AWG according to UL/CUL20

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1700718 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 10
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 250 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section solid-core (EF007337) 0.12 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Other
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
