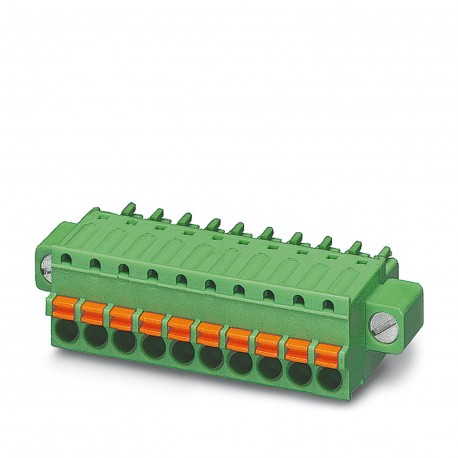

PHOENIX CONTACT FK-MCP 1,5/ 5-STF-3,5 BD:6-GNDQ FK-MCP 1,5/ 5-STF-3,5 BD:6-GNDQ 1107039 PHOENIX CONTACT Connector for printed circuit board, number of poles.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FK-MCP 1,5/ 5-STF-3,5 BD:6-GNDQ 1107039 PHOENIX CONTACT Connector for printed circuit board, number of poles..

FK-MCP 1,5/ 5-STF-3,5 BD:6-GNDQ

1107039

PHOENIX CONTACT

50 Pcs.

Connector for printed circuit board, number of poles: 5, pitch: 3.5 mm, color: green Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of rows: 1, number of poles: 5, family of articles: FK-MCP 1.5/.. -STF, pitch: 3.5mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, plug-in system: COMBICON MC 1.5, lock: Screw lock, fixing type: Air clamping (screw), packaging type: boxed Conductive plate connector, nominal cross-section: 1.5 mm2, colour: green, nominal current: 8 A, reference voltage (III/2): 160 V, contact area: Sn, contact type: Female connector, number of rows: 1, number of poles: 5, article range: FK-MCP 1.5/.. -STF, pitch: 3.5 mm, connection type: Push-in spring connection, conductor/PCB plugging direction: 0°, plug-in system: COMBICON MC 1.5, locking: Screw lock, fastening type: Screw flange, packaging type: packed in carton

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypeConductive Plate Connector
Product rangeFK-MCP 1.5/.. -STF
Product LineCOMBICON Connectors S
Number of poles5
Steps3.5 mm
Number of rows1
Data Management Status
Revision of the article00
Rated Current IN8 A
Rated voltage UN160 V
Contact resistance2 mΩ
Reference voltage (III/3)160 V
Rated Shock Resistance Voltage (III/3)2.5 kV
Rated Voltage (III/2)160 V
Rated Shock Withstand Voltage (III/2)2.5 kV
Reference voltage (II/2)320 V
Rated Shock Withstand Voltage (II/2)2.5 kV
Connection technology
TypeStandard
Connector SystemCOMBICON MC 1,5
Nominal cross-section1.5 mm²
Contact TypeFemale connector
Locking
Lock ModeScrew lock
Mounting FlangeScrew flange
Tightening torque0.3 Nm
Conductor connection
Connection typePush-in spring connection
Conductor/PCB Plugging Direction0 °
Rigid conductor cross-section0.14 mm² ... 1.5 mm²
Soft conductor section0.14 mm² ... 1.5 mm²
Conductive section. AWG26 ... 16
Soft conductor section with end cap, without plastic bushing0.25 mm² ... 1.5 mm²
Soft conductor section with plastic end cap and socket0.25 mm² ... 0.5 mm²
Template a x b / diameter2.4 mm x 1.5 mm / -
Stripping length9 mm
Data for Bits Without Insulating Collar
Recommended crimping tool1212034 CRIMPFOX 6
End caps without insulating collar, according to DIN 46228-1Section: 0.25 mm²; Length: 7 mm
Section: 0.34 mm²; Length: 7 mm
Section: 0.5 mm²; Length: 8 mm ... 10 mm
Section: 0.75 mm²; Length: 8 mm ... 10 mm
Section: 1 mm²; Length: 8 mm ... 10 mm
Section: 1.5 mm²; Length: 10 mm
Data for Bits with Insulating Collar
Recommended crimping tool1212034 CRIMPFOX 6
End caps with insulating collar, according to DIN 46228-4Section: 0.14 mm²; Length: 8 mm
Section: 0.25 mm²; Length: 8 mm
Section: 0.34 mm²; Length: 8 mm
Section: 0.5 mm²; Length: 8 mm ... 10 mm
Material indication - contact
NoteWEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface qualityTinned by hot dipping
Metal surface connection point (top layer)Tin (4 - 8 μm Sn)
Metal surface, contact area (top layer)Tin (4 - 8 μm Sn)
Material indication - housing
Colors (Cases)Green (6021)
Insulating materialPA
Insulation GroupI
CRI according to IEC 60112600
Flammability class according to UL 94V0
GWFI glow wire flammability class according to EN 60695-2-12850
GWIT glow wire ignition temperature according to EN 60695-2-13775
Ball pressure test temperature according to EN 60695-10-2125 °C
Material Indications - Actuation Element
Colour (Actuation Element)Orange (2003)
Insulating materialPOM
Insulation GroupI
CRI according to IEC 60112600
Flammability class according to UL 94HB
Dimensioned drawing
Steps3.5 mm
Width [w]27.8 mm
Height [h]12.4 mm
Length [l]20.8 mm
Flange
Tightening torque0.3 Nm
Conductor connection
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultSuccessful test
Investigation of damage and loosening of conductors
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultSuccessful test
Repeated logins and disconnections
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultSuccessful test
Traction Control
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor cross-section/conductor type/tractive force, nominal/actual0.14 mm² / rigid / > 10 N
0.14 mm² / soft / > 10 N
1.5 mm² / rigid / > 40 N
1.5 mm² / soft / > 40 N
Plug-in and Shrink Forces
Control SpecificationDIN EN 60512-13-2:2006-11
ResultSuccessful test
Number of cycles25
Approx. mating force per pole7 N
Removal force per pole approx.5 N
Resistance of inscriptions
Control SpecificationDIN EN 60068-2-70:1996-07
ResultSuccessful test
Polarization and keying
Control SpecificationDIN EN 60512-13-5:2006-11
ResultSuccessful test
Visual inspection
Control SpecificationDIN EN 60512-1-1:2003-01
ResultSuccessful test
Dimension control
Control SpecificationDIN EN 60512-1-2:2003-01
ResultSuccessful test
Vibration Resistance Test
Control SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Scan Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Inspection time per axis2.5 hrs
Sense of controlX, Y, and Z Axes
Lifetime test
Control SpecificationDIN IEC 60512-5:1994-05
Shock Resistance Voltage at Sea Level2.95 kV
Passage resistance R12 mΩ
Passage resistance R22.2 mΩ
Number of mating cycles25
Climate control
Control SpecificationDIN EN ISO 6988:1997-03
Corrosion susceptibility0.2 dm3SO2about 300 dm3/40 °C/1 cycle
Heat sensitivity100 °C/168 h
Alternating current withstand voltage1.39 kV
Shocks
Control SpecificationDIN EN 60068-2-27 (VDE 0468-2-27):2010-02
Shock formSemi-sinusoidal
Acceleration30g
Duration of shocks18 ms
Sense of controlX, Y and Z axes (pos. and neg.)
Environmental conditions
Ambient Temperature (Operating)-40 °C ... 100 °C (depending on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Thermal Testing Test Group C
Control SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested20
Insulation resistance
Control SpecificationDIN EN 60512-3-1:2003-01
Insulation resistance of neighboring poles1012Ω
Temperature Cycles
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultSuccessful test
Air Distances and Trailing Lines
Control SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulation GroupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))SIC 600
Rated Insulation Voltage (III/3)160 V
Rated Shock Resistance Voltage (III/3)2.5 kV
minimum value of distance in air - non-homogeneous field (III/3)1.5 mm
minimum creepage value (III/3)2 mm
Rated Insulation Voltage (III/2)160 V
Rated Shock Voltage (III/2)2.5 kV
minimum value of distance in air - non-homogeneous field (III/2)1.5 mm
minimum creepage value (III/2)1.5 mm
Rated Insulation Voltage (II/2)320 V
Rated Shock Withstand Voltage (II/2)2.5 kV
minimum value of distance in air - non-homogeneous field (II/2)1.5 mm
minimum creepage value (II/2)1.6 mm
Type of packagingpacked in a carton

ETIM for 1107039 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
