View larger
Images are for illustrative purposes only. Please refer to data sheet for details

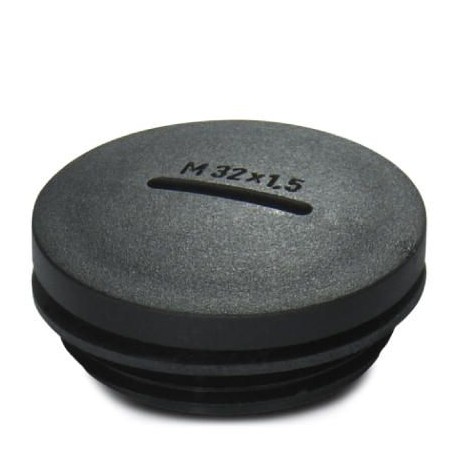

HC-K-BS-M32-BK 1410754 PHOENIX CONTACT Filler plugs
HC-K-BS-M32-BK
1410754
PHOENIX CONTACT
10 Pcs.
Filler plugs
Cables > Cable plug sealing clamp
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1410754 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 219 (NTK-2014) |
| GTIN | 4046356873208 |
| Weight per Piece (excluding packing) | 7.980 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP65 | |
| IP66 (Tightening torque 3.0 Nm) | |
| Ambient temperature (operation) | -30 °C ... 100 °C |
General
| Type of the screw connection | M32 |
|---|---|
| Material | Polyamide fiberglass reinforced |
| Seal material | CR |
| Flammability rating according to UL 94 | HB |
| Thread type connection side | M32 |
| Thread type on connection side | M32 |
| Torque | 3 Nm |
| Color | black |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
