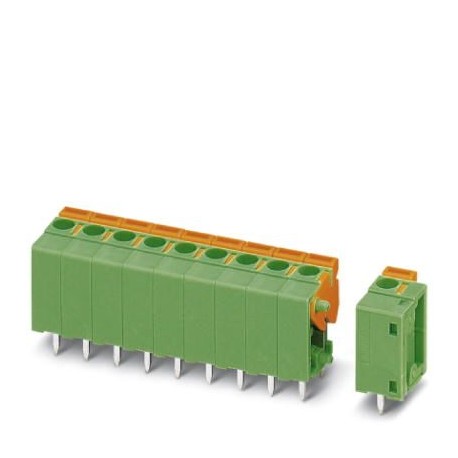

FFKDSA1/V1-5,08-17 1731167 PHOENIX CONTACT PCB terminal block
FFKDSA1/V1-5,08-17
1731167
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Printed circuit board terminal block, rated current: 15 A, rated voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 17, number of rows: 1, number of poles per row: 17, article family: FFKDS(A)/V1, pitch: 5.08 mm, connection type: Push-in spring connection, mounting: Wave soldering, connection direction conductor/printed circuit board: 90 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.4 mm, number of welding pins per potential: 2, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲PCB terminal block, nominal current: 15 A, nom. voltage: 320 V, pitch: 5.08 mm, number of positions: 17, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green
Key Commercial Data
| Orderkey | 1731167 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356157971 |
| Weight per Piece (excluding packing) | 17.590 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 12.7 mm |
|---|---|
| Pitch | 5.08 mm |
| Dimension a | 81.28 mm |
| Width [ w ] | 88.86 mm |
| Height | 13.6 mm |
| Height [ h ] | 17 mm |
| Solder pin [P] | 3.4 mm |
| Pin spacing | 7.62 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | FFKDS(A)/V1 |
|---|---|
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 320 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 630 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 15 A |
| Nominal cross section | 1.5 mm² |
| Solder pin surface | |
| Stripping length | 10 mm |
| Number of positions | 17 |
Connection data
| Conductor cross section AWG min. | 24 |
|---|---|
| Conductor cross section AWG max. | 16 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CUL |
Classifications
eCl@ss
| eCl@ss 4.0 | 27141109 |
|---|---|
| eCl@ss 4.1 | 27141109 |
| eCl@ss 5.0 | 27141190 |
| eCl@ss 5.1 | 27141190 |
| eCl@ss 6.0 | 27261101 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
ETIM
| ETIM 3.0 | EC001121 |
|---|---|
| ETIM 4.0 | EC002643 |
| ETIM 5.0 | EC002643 |
| ETIM 6.0 | EC002643 |
UNSPSC
| UNSPSC 6.01 | 30211801 |
|---|---|
| UNSPSC 7.0901 | 39121432 |
| UNSPSC 11 | 39121432 |
| UNSPSC 12.01 | 39121432 |
| UNSPSC 13.2 | 39121432 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 17 mm |
| Number of electrical connections (EF008252) | 17 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 15 A |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.4 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
