View larger
Images are for illustrative purposes only. Please refer to data sheet for details

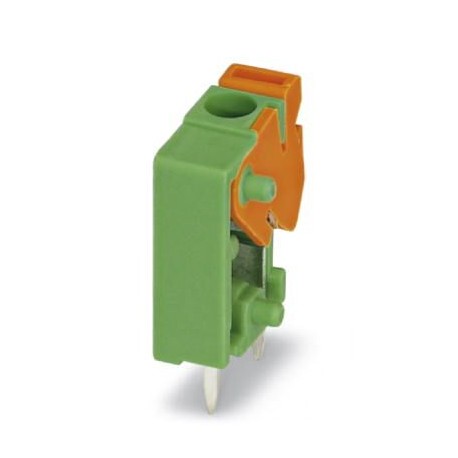

FFKDSA1/V1-5,08-10 MC BU-GN 1715997 PHOENIX CONTACT PCB terminal block
FFKDSA1/V1-5,08-10 MC BU-GN
1715997
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 15 A, dimensioning voltage (III/2): 400 V, nominal cross-section: 1.5 mm², Number of potentials: 10, Number of rows: 1, Number of poles per row: 10, article family: FFKDS(A)/V1, pitch:5.08 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: multicolor, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.4 mm, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲PCB terminal block, nominal current: 15 A, nom. voltage: 320 V, pitch: 5.08 mm, number of positions: 10, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: multi-color
Key Commercial Data
| Orderkey | 1715997 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626449463 |
| Custom tariff number | 85369010 |
Dimensions
| Length [ l ] | 12.7 mm |
|---|---|
| Pitch | 5.08 mm |
| Dimension a | 45.72 mm |
| Width [ w ] | 53.3 mm |
| Height | 13.6 mm |
| Height [ h ] | 17 mm |
| Solder pin [P] | 3.4 mm |
| Pin spacing | 7.62 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | FFKDS(A)/V1 |
|---|---|
| Nominal cross section | 1.5 mm² |
| Solder pin surface | |
| Number of positions | 10 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27261100 |
|---|---|
| eCl@ss 6.0 | 27261100 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
ETIM
| ETIM 5.0 | EC002643 |
|---|---|
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
